Squared and rectangular tubes, round tubes and black & galvanized pipes

We offer a wide range of steel tubes and pipes such as the squared and rectangular tubes as well as the round tubes and the black & galvanized pipes. Thanks to our large inventory, we can supply the steel requirements for all your construction, fabrication and the special projects.

Please click any of the below sections and explore the wide range and the technical specifications of our tubes and pipes inventory. In case you will not find the desired product or dimension of the existing one, please contact our representatives and they are going to find the products in the necessary dimensions for you.

Explore our range of STEEL TUBES AND PIPES

The form of the Square Tube, View 1

SQUARE TUBES (HSS)
HOT ROLLED (HSS) HRPO CREW
Standards (ASTM): A500 B & C, A513

The form of the Rectangular Tube, View 1

RECTANGULAR TUBES (HSS)
HOT ROLLED (HSS) HRPO CREW
Standards (ASTM): A500 B & C, A513

The form of the Round Tube, View 1

ROUND TUBES (HSS)
HOT ROLLED (HSS) HRPO CREW
Standards (ASTM): A500 B & C, A513

The form of Black & Galvanized Pipes - Schedule 40, View 1
BLACK & GALVANIZED PIPES
SCHEDULE 40
SEAMLESS (SMLS) WELDED (ERW)
Standards (ASTM): A106, A53

The form of Black & Galvanized Pipes - Schedule 80, View 1
BLACK & GALVANIZED PIPES
SCHEDULE 80
SEAMLESS (SMLS) WELDED (ERW)
Standards (ASTM): A106, A53

The form of Black & Galvanized Pipes - XXS, View 1

BLACK & GALVANIZED PIPES
XXS (DOUBLE EXTRA HEAVY)
SEAMLESS (SMLS) WELDED (ERW)
Standards (ASTM): A106, A53

The form of Round Mechanical Tubing, View 1

ROUND MECHANICAL TUBING
DOM, CDS, HFS
Standards (ASTM): A513 type 5, A519, A519/A106

The form of Round Hydraulic Tubing, View 1

ROUND HYDRAULIC TUBING
SEAMLESS (SMLS), WELDED (ERW)
Standards (ASTM): A179, J524B,
SAE J525B

Browse all the Technical Specifications & Available Dimensions

The form of the Square Tube, View 2

SQUARE TUBES (HSS)

HOT ROLLED (HSS) HRPO CREW

Standards (ASTM): A500 B & C, A513
Available dimensions: 20′, 24′ & 48′ or cut to size

The Square Steel Tube is a welded structural steel tube with an internal weld seam present. Available in A513 or A500 Grade B depending on its size and wall thickness.

APPLICATION and USAGE of the SQUARE STEEL TUBES:

The Square Steel Tube is widely used in industrial maintenance, agricultural implements, transportation equipment, ornamental, etc. HSS Tubes must fulfill a structural function in the context of an engineering concept. The physical properties and the commercial quality of these are guaranteed.

  • Construction:

    • Frameworks and Support Structures:  Square tubes are extensively used in construction for creating frameworks, support columns, and trusses. Their high strength-to-weight ratio makes them ideal for these applications. They are also commonly found in fencing, railings, entry gates, and decorative dividers.

    • Architectural Design:  Architects frequently use square tubing for railings, balusters, and ornamental structures due to its sleek appearance and durability, fitting well into modern architectural designs.

  • Manufacturing:

    • Machinery Frames and Conveyor Systems:  In manufacturing, square tubes are essential for building machinery frames, conveyor systems, and material handling equipment. Their robustness and reliability make them suitable for these high-stress applications.

  • Transportation:

    • Vehicle Frames and Chassis:  Square tubing is widely used in the automotive and aerospace industries for constructing vehicle frames, chassis, and roll cages. Its strength and lightweight properties help enhance the safety and performance of vehicles.

  • Furniture:

    • Modern and Minimalist Designs: Square tubes are popular in furniture design, especially for creating modern and minimalist pieces like tables, chairs, and shelving units. Their clean lines and structural stability make them a preferred choice in this field.

  • General Industrial Use:

    • Support Columns and Structural Components: Square tubes are used in various industrial applications for constructing support columns, frames, and other structural components that require high durability and resistance to heavy loads.

  • Durability:  Resistant to rust and physical impacts, especially when galvanized or coated.
  • Versatility:  Easily cut and shaped for various custom applications.
  • Cost-Effective:  Offers a strong and lightweight alternative to solid materials, reducing construction costs.

Square Tubes

wdt_ID Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
1 3/4″ x 3/4″ 19mm x 19mm
2 3/4″ x 3/4″ x 0.083″ 19mm x 19mm x 2.11mm 0.750 lbs.
3 1″ x 1″ 25.4mm x 25.4mm
4 1″ x 1″ x 0.083″ 25.4mm x 25.4mm x 2.11mm 1.040 lbs.
5 1″ x 1″ x 0.100″ 25.4mm x 25.4mm x 2.54mm 1.140 lbs.
6 1″ x 1″ x 0.110″ 25.4mm x 25.4mm x 2.79mm 1.230 lbs.
7 1″ x 1″ x 0.125″ 25.4mm x 25.4mm x 3.18mm 1.350 lbs.
8 1″ x 1″ x 0.150″ 25.4mm x 25.4mm x 3.81mm 1.540 lbs.
9 1 1/4″ x 1 1/4″ 31.8mm x 31.8mm
10 1 1/4″ x 1 1/4″ x 0.083″ 31.8mm x 31.8mm x 2.11mm 1.230 lbs.
11 1 1/4″ x 1 1/4″ x 0.100″ 31.8mm x 31.8mm x 2.54mm 1.480 lbs.
12 1 1/4″ x 1 1/4″ x 0.110″ 31.8mm x 31.8mm x 2.79mm 1.570 lbs.
13 1 1/4″ x 1 1/4″ x 0.125″ 31.8mm x 31.8mm x 3.18mm 1.780 lbs.
14 1 1/4″ x 1 1/4″ x 0.150″ 31.8mm x 31.8mm x 3.81mm 2.050 lbs.
15 1 1/2″ x 1 1/2″ 38.1mm x 38.1mm
16 1 1/2″ x 1 1/2″ x 0.083″ 38.1mm x 38.1mm x 2.11mm 1.510 lbs.
17 1 1/2″ x 1 1/2″ x 0.100″ 38.1mm x 38.1mm x 2.54mm 1.820 lbs.
18 1 1/2″ x 1 1/2″ x 0.110″ 38.1mm x 38.1mm x 2.79mm 1.970 lbs.
19 1 1/2″ x 1 1/2″ x 0.125″ 38.1mm x 38.1mm x 3.18mm 2.210 lbs.
20 1 1/2″ x 1 1/2″ x 0.134″ 38.1mm x 38.1mm x 3.40mm 2.330 lbs.
21 1 1/2″ x 1 1/2″ x 0.150″ 38.1mm x 38.1mm x 3.81mm 2.560 lbs.
22 1 1/2″ x 1 1/2″ x 0.188″ 38.1mm x 38.1mm x 4.78mm 3.350 lbs.
23 1 3/4″ x 1 3/4″ 44.5mm x 44.5mm
24 1 3/4″ x 1 3/4″ x 0.100″ 44.5mm x 44.5mm x 2.54mm 2.240 lbs.
25 1 3/4″ x 1 3/4″ x 0.110″ 44.5mm x 44.5mm x 2.79mm 2.450 lbs.
26 1 3/4″ x 1 3/4″ x 0.125″ 44.5mm x 44.5mm x 3.18mm 2.760 lbs.
27 2″ x 2″ 50.8mm x 50.8mm
28 2″ x 2″ x 0.100″ 50.8mm x 50.8mm x 2.54mm 2.580 lbs.
29 2″ x 2″ x 0.110″ 50.8mm x 50.8mm x 2.79mm 2.830 lbs.
30 2″ x 2″ x 0.125″ 50.8mm x 50.8mm x 3.18mm 3.060 lbs.
31 2″ x 2″ x 0.134″ 50.8mm x 50.8mm x 3.40mm 3.240 lbs.
32 2″ x 2″ x 0.150″ 50.8mm x 50.8mm x 3.81mm 3.580 lbs.
33 2″ x 2″ x 0.188″ 50.8mm x 50.8mm x 4.78mm 4.330 lbs.
34 2″ x 2″ x 0.250″ 50.8mm x 50.8mm x 6.35mm 5.410 lbs.
35 2 1/4″ x 2 1/4″ 57.2mm x 57.2mm
36 2 1/4″ x 2 1/4″ x 0.100″ 57.2mm x 57.2mm x 2.54mm 2.840 lbs.
37 2 1/4″ x 2 1/4″ x 0.125″ 57.2mm x 57.2mm x 3.18mm 3.480 lbs.
38 2 1/4″ x 2 1/4″ x 0.150″ 57.2mm x 57.2mm x 3.81mm 4.090 lbs.
39 2 1/4″ x 2 1/4″ x 0.188″ 57.2mm x 57.2mm x 4.78mm 4.960 lbs.
40 2 1/4″ x 2 1/4″ x 0.250″ 57.2mm x 57.2mm x 6.35mm 6.260 lbs.
41 2 1/2″ x 2 1/2″ 63.5mm x 63.5mm
42 2 1/2″ x 2 1/2″ x 0.100″ 63.5mm x 63.5mm x 2.54mm 3.260 lbs.
43 2 1/2″ x 2 1/2″ x 0.110″ 63.5mm x 63.5mm x 2.79mm 3.580 lbs.
44 2 1/2″ x 2 1/2″ x 0.125″ 63.5mm x 63.5mm x 3.18mm 3.910 lbs.
45 2 1/2″ x 2 1/2″ x 0.134″ 63.5mm x 63.5mm x 3.40mm 4.160 lbs.
46 2 1/2″ x 2 1/2″ x 0.150″ 63.5mm x 63.5mm x 3.81mm 4.600 lbs.
47 2 1/2″ x 2 1/2″ x 0.188″ 63.5mm x 63.5mm x 4.78mm 5.610 lbs.
48 2 1/2″ x 2 1/2″ x 0.210″ 63.5mm x 63.5mm x 5.33mm 6.160 lbs.
49 2 1/2″ x 2 1/2″ x 0.230″ 63.5mm x 63.5mm x 5.84mm 6.420 lbs.
50 2 1/2″ x 2 1/2″ x 0.250″ 63.5mm x 63.5mm x 6.35mm 7.110 lbs.
51 2 3/4″ x 2 3/4″ 69.9mm x 69.9mm
52 2 3/4″ x 2 3/4″ x 0.110″ 69.9mm x 69.9mm x 2.79mm 3.960 lbs.
53 2 3/4″ x 2 3/4″ x 0.125″ 69.9mm x 69.9mm x 3.18mm 4.340 lbs.
54 2 3/4″ x 2 3/4″ x 0.150″ 69.9mm x 69.9mm x 3.81mm 5.110 lbs.
55 3″ x 3″ 76.2mm x 76.2mm
56 3″ x 3″ x 0.095″ 76.2mm x 76.2mm x 2.41mm 3.750 lbs.
57 3″ x 3″ x 0.100″ 76.2mm x 76.2mm x 2.54mm 3.950 lbs.
58 3″ x 3″ x 0.110″ 76.2mm x 76.2mm x 2.79mm 4.320 lbs.
59 3″ x 3″ x 0.125″ 76.2mm x 76.2mm x 3.18mm 4.760 lbs.
60 3″ x 3″ x 0.134″ 76.2mm x 76.2mm x 3.40mm 5.070 lbs.
61 3″ x 3″ x 0.150″ 76.2mm x 76.2mm x 3.81mm 5.620 lbs.
62 3″ x 3″ x 0.188″ 76.2mm x 76.2mm x 4.78mm 6.890 lbs.
63 3″ x 3″ x 0.210″ 76.2mm x 76.2mm x 5.33mm 7.590 lbs.
64 3″ x 3″ x 0.250″ 76.2mm x 76.2mm x 6.35mm 8.810 lbs.
65 3″ x 3″ x 0.313″ 76.2mm x 76.2mm x 7.95mm 10.590 lbs.
66 3″ x 3″ x 0.375″ 76.2mm x 76.2mm x 9.53mm 12.170 lbs.
67 3 1/2″ x 3 1/2″ 88.9mm x 88.9mm
68 3 1/2″ x 3 1/2″ x 0.109″ 88.9mm x 88.9mm x 2.77mm 4.950 lbs.
69 3 1/2″ x 3 1/2″ x 0.120″ 88.9mm x 88.9mm x 3.05mm 5.540 lbs.
70 3 1/2″ x 3 1/2″ x 0.125″ 88.9mm x 88.9mm x 3.18mm 5.610 lbs.
71 3 1/2″ x 3 1/2″ x 0.134″ 88.9mm x 88.9mm x 3.40mm 5.980 lbs.
72 3 1/2″ x 3 1/2″ x 0.150″ 88.9mm x 88.9mm x 3.81mm 6.640 lbs.
73 3 1/2″ x 3 1/2″ x 0.188″ 88.9mm x 88.9mm x 4.78mm 8.170 lbs.
74 3 1/2″ x 3 1/2″ x 0.210″ 88.9mm x 88.9mm x 5.33mm 9.010 lbs.
75 3 1/2″ x 3 1/2″ x 0.250″ 88.9mm x 88.9mm x 6.35mm 10.510 lbs.
76 3 1/2″ x 3 1/2″ x 0.313 1/2″ 88.9mm x 88.9mm x 7.95mm 12.700 lbs.
77 3 1/2″ x 3 1/2″ x 0.375″ 88.9mm x 88.9mm x 9.53mm 14.710 lbs.
78 3 3/4″ x 3 3/4″ 95.3mm x 95.3mm
79 3 3/4″ x 3 3/4″ x 0.150″ 95.3mm x 95.3mm x 3.81mm 7.150 lbs.
80 3 3/4″ x 3 3/4″ x 0.188″ 95.3mm x 95.3mm x 4.78mm 8.810 lbs.
81 3 3/4″ x 3 3/4″ x 0.250″ 95.3mm x 95.3mm x 6.35mm 11.360 lbs.
82 3 3/4″ x 3 3/4″ x 0.313 3/4″ 95.3mm x 95.3mm x 7.95mm 13.770 lbs.
83 4″ x 4″ 101.6mm x 101.6mm
84 4″ x 4″ x 0.109″ 101.6mm x 101.6mm x 2.77mm 5.690 lbs.
85 4″ x 4″ x 0.125″ 101.6mm x 101.6mm x 3.18mm 6.460 lbs.
86 4″ x 4″ x 0.134″ 101.6mm x 101.6mm x 3.40mm 6.890 lbs.
87 4″ x 4″ x 0.150″ 101.6mm x 101.6mm x 3.81mm 7.660 lbs.
88 4″ x 4″ x 0.188″ 101.6mm x 101.6mm x 4.78mm 9.450 lbs.
89 4″ x 4″ x 0.210″ 101.6mm x 101.6mm x 5.33mm 10.510 lbs.
90 4″ x 4″ x 0.250″ 101.6mm x 101.6mm x 6.35mm 12.210 lbs.
91 4″ x 4″ x 0.313″ 101.6mm x 101.6mm x 7.95mm 14.830 lbs.
92 4″ x 4″ x 0.375″ 101.6mm x 101.6mm x 9.53mm 17.270 lbs.
93 4″ x 4″ x 0.500″ 101.6mm x 101.6mm x 12.70mm 21.630 lbs.
94 4 1/2″ x 4 1/2″ 114.3mm x 114.3mm
95 4 1/2″ x 4 1/2″ x 0.125″ 114.3mm x 114.3mm x 3.18mm 7.310 lbs.
96 4 1/2″ x 4 1/2″ x 0.134 1/2″ 114.3mm x 114.3mm x 3.40mm 7.810 lbs.
97 4 1/2″ x 4 1/2″ x 0.150″ 114.3mm x 114.3mm x 3.81mm 8.690 lbs.
98 4 1/2″ x 4 1/2″ x 0.188″ 114.3mm x 114.3mm x 4.78mm 10.700 lbs.
99 4 1/2″ x 4 1/2″ x 0.250″ 114.3mm x 114.3mm x 6.35mm 13.910 lbs.
100 4 1/2″ x 4 1/2″ x 0.313″ 114.3mm x 114.3mm x 7.95mm 16.960 lbs.
101 4 1/2″ x 4 1/2″ x 0.375″ 114.3mm x 114.3mm x 9.53mm 19.820 lbs.
102 5″ x 5″ 127.0mm x 127.0mm
103 5″ x 5″ x 0.150″ 127.0mm x 127.0mm x 3.81mm 9.710 lbs.
104 5″ x 5″ x 0.188″ 127.0mm x 127.0mm x 4.78mm 12.000 lbs.
105 5″ x 5″ x 0.250″ 127.0mm x 127.0mm x 6.35mm 15.620 lbs.
106 5″ x 5″ x 0.313″ 127.0mm x 127.0mm x 7.95mm 19.080 lbs.
107 5″ x 5″ x 0.375″ 127.0mm x 127.0mm x 9.53mm 22.370 lbs.
108 5″ x 5″ x 0.438″ 127.0mm x 127.0mm x 11.13mm 25.500 lbs.
109 5″ x 5″ x 0.500″ 127.0mm x 127.0mm x 12.70mm 28.430 lbs.
110 5 1/2″ x 5 1/2″ 139.7mm x 139.7mm
111 5 1/2″ x 5 1/2″ x 0.188″ 139.7mm x 139.7mm x 4.78mm 13.280 lbs.
112 5 1/2″ x 5 1/2″ x 0.250″ 139.7mm x 139.7mm x 6.35mm 17.320 lbs.
113 5 1/2″ x 5 1/2″ x 0.313″ 139.7mm x 139.7mm x 7.95mm 21.180 lbs.
114 5 1/2″ x 5 1/2″ x 0.375 1/2″ 139.7mm x 139.7mm x 9.53mm 24.920 lbs.
115 6″ x 6″ 152.4mm x 152.4mm
116 6″ x 6″ x 0.188″ 152.4mm x 152.4mm x 4.78mm 14.560 lbs.
117 6″ x 6″ x 0.250″ 152.4mm x 152.4mm x 6.35mm 19.020 lbs.
118 6″ x 6″ x 0.313″ 152.4mm x 152.4mm x 7.95mm 23.330 lbs.
119 6″ x 6″ x 0.375 152.4mm x 152.4mm x 9.53mm 27.480 lbs.
120 6″ x 6″ x 0.438″ 152.4mm x 152.4mm x 11.13mm 31.500 lbs.
121 6″ x 6″ x 0.500″ 152.4mm x 152.4mm x 12.70mm 35.240 lbs.
122 6″ x 6″ x 0.625″ 152.4mm x 152.4mm x 15.88mm 42.260 lbs.
123 7″ x 7″ 177.8mm x 177.8mm
124 7″ x 7″ x 0.188″ 177.8mm x 177.8mm x 4.78mm 17.130 lbs.
125 7″ x 7″ x 0.250″ 177.8mm x 177.8mm x 6.35mm 22.420 lbs.
126 7″ x 7″ x 0.313″ 177.8mm x 177.8mm x 7.95mm 27.630 lbs.
127 7″ x 7″ x 0.375 177.8mm x 177.8mm x 9.53mm 32.580 lbs.
128 7″ x 7″ x 0.438″ 177.8mm x 177.8mm x 11.13mm 37.500 lbs.
129 7″ x 7″ x 0.500″ 177.8mm x 177.8mm x 12.70mm 42.050 lbs.
130 7″ x 7″ x 0.625″ 177.8mm x 177.8mm x 15.88mm 50.760 lbs.
131 8″ x 8″ 203.2mm x 203.2mm
132 8″ x 8″ x 0.188″ 203.2mm x 203.2mm x 4.78mm 19.630 lbs.
133 8″ x 8″ x 0.250″ 203.2mm x 203.2mm x 6.35mm 25.820 lbs.
134 8″ x 8″ x 0.313″ 203.2mm x 203.2mm x 7.95mm 31.840 lbs.
135 8″ x 8″ x 0.375 203.2mm x 203.2mm x 9.53mm 37.690 lbs.
136 8″ x 8″ x 0.438″ 203.2mm x 203.2mm x 11.13mm 43.400 lbs.
137 8″ x 8″ x 0.500″ 203.2mm x 203.2mm x 12.70mm 48.850 lbs.
138 8″ x 8″ x 0.625″ 203.2mm x 203.2mm x 15.88mm 59.320 lbs.
139 9″ x 9″ 228.6mm x 228.6mm
140 9″ x 9″ x 0.188″ 228.6mm x 228.6mm x 4.78mm 22.180 lbs.
141 9″ x 9″ x 0.250″ 228.6mm x 228.6mm x 6.35mm 29.230 lbs.
142 9″ x 9″ x 0.313″ 228.6mm x 228.6mm x 7.95mm 36.100 lbs.
143 9″ x 9″ x 0.375 228.6mm x 228.6mm x 9.53mm 42.790 lbs.
144 9″ x 9″ x 0.500″ 228.6mm x 228.6mm x 12.70mm 55.660 lbs.
145 10″ x 10″ 254.0mm x 254.0mm
146 10″ x 10″ x 0.250″ 254.0mm x 254.0mm x 6.35mm 32.630 lbs.
147 10″ x 10″ x 0.313″ 254.0mm x 254.0mm x 7.95mm 40.350 lbs.
148 10″ x 10″ x 0.375 254.0mm x 254.0mm x 9.53mm 47.900 lbs.
149 10″ x 10″ x 0.438″ 254.0mm x 254.0mm x 11.13mm 55.400 lbs.
150 10″ x 10″ x 0.500″ 254.0mm x 254.0mm x 12.70mm 62.460 lbs.
151 10″ x 10″ x 0.625″ 254.0mm x 254.0mm x 15.88mm 76.330 lbs.
152 12″ x 12″ 304.8mm x 304.8mm
153 12″ x 12″ x 0.250″ 304.8mm x 304.8mm x 6.35mm 39.430 lbs.
154 12″ x 12″ x 0.313″ 304.8mm x 304.8mm x 7.95mm 48.860 lbs.
155 12″ x 12″ x 0.375 304.8mm x 304.8mm x 9.53mm 58.100 lbs.
156 12″ x 12″ x 0.438″ 304.8mm x 304.8mm x 11.13mm 67.500 lbs.
157 12″ x 12″ x 0.500″ 304.8mm x 304.8mm x 12.70mm 76.070 lbs.
158 14″ x 14″ 355.6mm x 355.6mm
159 14″ x 14″ x 0.313″ 355.6mm x 355.6mm x 7.95mm 57.360 lbs.
160 14″ x 14″ x 0.375 355.6mm x 355.6mm x 9.53mm 68.310 lbs.
161 14″ x 14″ x 0.500″ 355.6mm x 355.6mm x 12.70mm 89.680 lbs.
162 16″ x 16″ 406.4mm x 406.4mm
163 16″ x 16″ x 0.313″ 406.4mm x 406.4mm x 7.95mm 62.870 lbs.
164 16″ x 16″ x 0.375 406.4mm x 406.4mm x 9.53mm 78.520 lbs.
165 16″ x 16″ x 0.500″ 406.4mm x 406.4mm x 12.70mm 103.300 lbs.
Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
Download the List of the Tubes

Back-to-Top

Return to all Products

 Browse All Technical Specifications & Available Dimensions

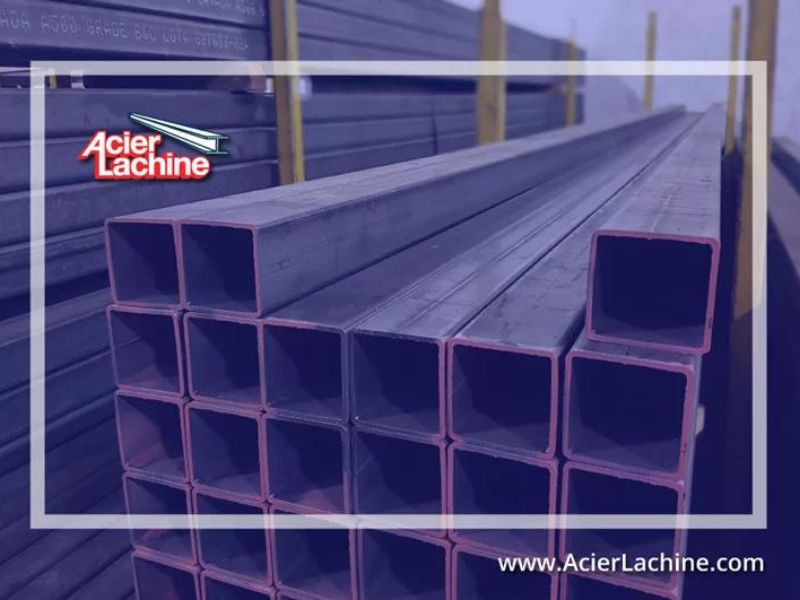

The form of the Rectangular Tube, View 2

RECTANGULAR TUBES (HSS)

HOT ROLLED (HSS) HRPO CREW

Standards (ASTM): A500 B & C, A513

Available dimensions: 20′, 24′ & 48′ or cut to size

The Rectangle Steel Tube is a welded structural steel tube with an internal weld seam present. Available in A513 or A500 Grade B depending on its size and wall thickness.

APPLICATION and USAGE of the RECTANGULAR TUBES:

The Rectangular Steel Tube is widely used in industrial maintenance, agricultural implements, transportation equipment, ornamental, etc. HSS Tubes must fulfill a structural function in the context of an engineering concept. The physical properties and the commercial quality of these are guaranteed.

  • Construction and Infrastructure:

    • Structural Supports:  Commonly used in building frameworks, including roof beams, columns, and trusses, due to their high strength and rigidity.

    • Architectural Elements:   Employed in creating modern architectural designs for facades, handrails, and decorative elements because of their sleek and contemporary look.

  • Transportation:

    • Automotive Industry:  Utilized in the chassis of vehicles, trailers, and buses for their robustness and lightweight properties.

    • Railway and Marine:  Used in constructing railcars, ship frames, and other transportation equipment due to their ability to withstand harsh conditions.

  • Machinery and Heavy Equipment:

    • Industrial Equipment:  Integral in manufacturing machinery frames, supports, and high-pressure vessels, ensuring durability and reliability in heavy-duty applications.

    • Agricultural Machinery:  Utilized in the fabrication of farm equipment like plows, tractors, and harvesters for their ability to endure rigorous use.

  • Energy Sector:

    • Power Transmission: Employed in making transmission towers and substation structures due to their strength and ability to support heavy loads.

    • Oil and Gas: Used in constructing pipelines, rigs, and refineries, where resistance to corrosion and high-pressure conditions is crucial.

  • Miscellaneous Applications:

    • Furniture: Used in making modern furniture such as tables, chairs, and storage units, offering a blend of aesthetic appeal and functionality.

    • Sports Equipment: Utilized in manufacturing gym equipment, goalposts, and playground structures for their strength and lightweight properties.

  • Strength and Durability:  Offers excellent strength-to-weight ratio, making them suitable for load-bearing applications.
  • Cost-Effectiveness:  Efficient use of material reduces costs while maintaining high performance.
  • Fabrication Ease:  Easily cut, welded, and shaped to meet specific project requirements.
  • Corrosion Resistance:  Especially when made from stainless steel, providing long-term durability in various environments.
  • Recyclability:  Made from recyclable materials like steel and aluminum, contributing to sustainable construction practices.

Rectangular Tubes

wdt_ID Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
1 1 1/2″ x 1″ 38.1mm x 25.4mm
2 1 1/2″ x 1″ x 0.100″ 38.1mm x 25.4mm x 2.54mm 1.560 lbs.
3 1 1/2″ x 1″ x 0.110″ 38.1mm x 25.4mm x 2.79mm 1.710 lbs.
4 1 1/2″ x 1″ x 0.125″ 38.1mm x 25.4mm x 3.18mm 1.910 lbs.
5 1 1/2″ x 1″ x 0.150″ 38.1mm x 25.4mm x 3.81mm 2.180 lbs.
6 2″ x 1″ 50.8mm x 25.4mm
7 2″ x 1″ x 0.083″ 50.8mm x 25.4mm x 2.11mm 1.610 lbs.
8 2″ x 1″ x 0.100″ 50.8mm x 25.4mm x 2.54mm 1.820 lbs.
9 2″ x 1″ x 0.110″ 50.8mm x 25.4mm x 2.79mm 1.940 lbs.
10 2″ x 1″ x 0.125″ 50.8mm x 25.4mm x 3.18mm 2.210 lbs.
11 2″ x 1″ x 0.134″ 50.8mm x 25.4mm x 3.40mm 2.490 lbs.
12 2″ x 1″ x 0.150″ 50.8mm x 25.4mm x 3.81mm 2.750 lbs.
13 2″ x 1″ x 0.188″ 50.8mm x 25.4mm x 4.78mm 3.350 lbs.
14 2″ x 1 1/2″ 50.8mm x 38.1mm
15 2″ x 1 1/2″ x 0.100″ 50.8mm x 38.1mm x 2.54mm 2.580 lbs.
16 2″ x 1 1/2″ x 0.125″ 50.8mm x 38.1mm x 3.18mm 2.660 lbs.
17 2 1/2″ x 1 1/2″ 63.5mm x 38.1mm
18 2 1/2″ x 1 1/2″ x 0.100″ 63.5mm x 38.1mm x 2.54mm 2.580 lbs.
19 2 1/2″ x 1 1/2″ x 0.110″ 63.5mm x 38.1mm x 2.79mm 2.830 lbs.
20 2 1/2″ x 1 1/2″ x 0.125″ 63.5mm x 38.1mm x 3.18mm 3.060 lbs.
21 2 1/2″ x 1 1/2″ x 0.150″ 63.5mm x 38.1mm x 3.81mm 3.580 lbs.
22 2 1/2″ x 1 1/2″ x 0.188″ 63.5mm x 38.1mm x 4.78mm 4.330 lbs.
23 2 1/2″ x 1 1/2″ x 0.250″ 63.5mm x 38.1mm x 6.35mm 5.410 lbs.
24 3″ x 1″ 76.2mm x 25.4mm
25 3″ x 1″ x 0.100″ 76.2mm x 25.4mm x 2.54mm 2.580 lbs.
26 3″ x 1″ x 0.110″ 76.2mm x 25.4mm x 2.79mm 2.830 lbs.
27 3″ x 1″ x 0.125″ 76.2mm x 25.4mm x 3.18mm 3.060 lbs.
28 3″ x 1″ x 0.150″ 76.2mm x 25.4mm x 3.81mm 3.580 lbs.
29 3″ x 1″ x 0.188″ 76.2mm x 25.4mm x 4.78mm 4.330 lbs.
30 3″ x 1″ x 0.250″ 76.2mm x 25.4mm x 6.35mm 5.410 lbs.
31 3″ x 1 1/2″ 76.2mm x 38.1mm
32 3″ x 1 1/2″ x 0.100″ 76.2mm x 38.1mm x 2.54mm 2.920 lbs.
33 3″ x 1 1/2″ x 0.125″ 76.2mm x 38.1mm x 3.18mm 3.480 lbs.
34 3″ x 1 1/2″ x 0.150″ 76.2mm x 38.1mm x 3.81mm 4.090 lbs.
35 3″ x 1 1/2″ x 0.188″ 76.2mm x 38.1mm x 4.78mm 4.960 lbs.
36 3″ x 2″ 76.2mm x 50.8mm
37 3″ x 2″ x 0.100″ 76.2mm x 50.8mm x 2.54mm 3.260 lbs.
38 3″ x 2″ x 0.110″ 76.2mm x 50.8mm x 2.79mm 3.580 lbs.
39 3″ x 2″ x 0.125″ 76.2mm x 50.8mm x 3.18mm 3.910 lbs.
40 3″ x 2″ x 0.134″ 76.2mm x 50.8mm x 3.40mm 4.160 lbs.
41 3″ x 2″ x 0.150″ 76.2mm x 50.8mm x 3.81mm 4.600 lbs.
42 3″ x 2″ x 0.188″ 76.2mm x 50.8mm x 4.78mm 5.610 lbs.
43 3″ x 2″ x 0.210″ 76.2mm x 50.8mm x 5.33mm 6.160 lbs.
44 3″ x 2″ x 0.250″ 76.2mm x 50.8mm x 6.35mm 7.110 lbs.
45 3″ x 2″ x 0.313″ 76.2mm x 50.8mm x 7.95mm 8.430 lbs.
46 3″ x 2 1/2″ 76.2mm x 63.5mm
47 3″ x 2 1/2″ x 0.090″ 76.2mm x 63.5mm x 2.79mm 3.190 lbs.
48 3″ x 2 1/2″ x 0.109″ 76.2mm x 63.5mm x 2.77mm 3.810 lbs.
49 3″ x 2 1/2″ x 0.125″ 76.2mm x 63.5mm x 3.18mm 4.310 lbs.
50 3″ x 2 1/2″ x 0.160″ 76.2mm x 63.5mm x 4.06mm 5.430 lbs.
51 3″ x 2 1/2″ x 0.188″ 76.2mm x 63.5mm x 4.78mm 6.250 lbs.
52 3 1/2″ x 2″ 88.9mm x 50.8mm
53 3 1/2″ x 2″ x 0.090″ 88.9mm x 50.8mm x 2.79mm 3.190 lbs.
54 3 1/2″ x 2″ x 0.109″ 88.9mm x 50.8mm x 2.77mm 3.810 lbs.
55 3 1/2″ x 2″ x 0.125″ 88.9mm x 50.8mm x 3.18mm 4.310 lbs.
56 3 1/2″ x 2″ x 0.160″ 88.9mm x 50.8mm x 4.06mm 5.430 lbs.
57 3 1/2″ x 2″ x 0.188″ 88.9mm x 50.8mm x 4.78mm 6.250 lbs.
58 3 1/2″ x 2 1/2″ 88.9mm x 63.5mm
59 3 1/2″ x 2 1/2″ x 0.095″ 88.9mm x 63.5mm x 2.41mm 3.660 lbs.
60 3 1/2″ x 2 1/2″ x 0.125″ 88.9mm x 63.5mm x 3.18mm 4.760 lbs.
61 3 1/2″ x 2 1/2″ x 0.134″ 88.9mm x 63.5mm x 3.40mm 5.070 lbs.
62 3 1/2″ x 2 1/2″ x 0.150″ 88.9mm x 63.5mm x 3.81mm 5.620 lbs.
63 3 1/2″ x 2 1/2″ x 0.188″ 88.9mm x 63.5mm x 4.78mm 6.890 lbs.
64 3 1/2″ x 2 1/2″ x 0.210″ 88.9mm x 63.5mm x 5.33mm 7.590 lbs.
65 3 1/2″ x 2 1/2″ x 0.250″ 88.9mm x 63.5mm x 6.35mm 8.810 lbs.
66 3 1/2″ x 2 1/2″ x 0.313″ 88.9mm x 63.5mm x 7.95mm 10.590 lbs.
67 4″ x 2″ 101.6mm x 50.8mm
68 4″ x 2″ x 0.095″ 101.6mm x 50.8mm x 2.41mm 3.660 lbs.
69 4″ x 2″ x 0.125″ 101.6mm x 50.8mm x 3.18mm 4.760 lbs.
70 4″ x 2″ x 0.134″ 101.6mm x 50.8mm x 3.40mm 5.070 lbs.
71 4″ x 2″ x 0.150″ 101.6mm x 50.8mm x 3.81mm 5.620 lbs.
72 4″ x 2″ x 0.188″ 101.6mm x 50.8mm x 4.78mm 6.890 lbs.
73 4″ x 2″ x 0.210″ 101.6mm x 50.8mm x 5.33mm 7.590 lbs.
74 4″ x 2″ x 0.250″ 101.6mm x 50.8mm x 6.35mm 8.810 lbs.
75 4″ x 2″ x 0.313″ 101.6mm x 50.8mm x 7.95mm 10.590 lbs.
76 4″ x 3″ 101.6mm x 76.2mm
77 4″ x 3″ x 0.109″ 101.6mm x 76.2mm x 2.77mm 4.920 lbs.
78 4″ x 3″ x 0.120″ 101.6mm x 76.2mm x 3.05mm 5.390 lbs.
79 4″ x 3″ x 0.125″ 101.6mm x 76.2mm x 3.18mm 5.610 lbs.
80 4″ x 3″ x 0.134″ 101.6mm x 76.2mm x 3.40mm 5.980 lbs.
81 4″ x 3″ x 0.150″ 101.6mm x 76.2mm x 3.81mm 6.640 lbs.
82 4″ x 3″ x 0.188″ 101.6mm x 76.2mm x 4.78mm 8.170 lbs.
83 4″ x 3″ x 0.210″ 101.6mm x 76.2mm x 5.33mm 9.010 lbs.
84 4″ x 3″ x 0.250″ 101.6mm x 76.2mm x 6.35mm 10.510 lbs.
85 4″ x 3″ x 0.313″ 101.6mm x 76.2mm x 7.95mm 12.700 lbs.
86 4″ x 3″ x 0.375 101.6mm x 76.2mm x 9.53mm 14.710 lbs.
87 5″ x 2″ 127mm x 50.8mm
88 5″ x 2″ x 0.109″ 127mm x 50.8mm x 2.77mm 4.920 lbs.
89 5″ x 2″ x 0.120″ 127mm x 50.8mm x 3.05mm 5.390 lbs.
90 5″ x 2″ x 0.125″ 127mm x 50.8mm x 3.18mm 5.610 lbs.
91 5″ x 2″ x 0.134″ 127mm x 50.8mm x 3.40mm 5.980 lbs.
92 5″ x 2″ x 0.150″ 127mm x 50.8mm x 3.81mm 6.640 lbs.
93 5″ x 2″ x 0.188″ 127mm x 50.8mm x 4.78mm 8.170 lbs.
94 5″ x 2″ x 0.210″ 127mm x 50.8mm x 5.33mm 9.010 lbs.
95 5″ x 2″ x 0.250″ 127mm x 50.8mm x 6.35mm 10.510 lbs.
96 5″ x 2″ x 0.313″ 127mm x 50.8mm x 7.95mm 12.700 lbs.
97 5″ x 2″ x 0.375 127mm x 50.8mm x 9.53mm 14.710 lbs.
98 5″ x 2 1/2″ 127mm x 63.5mm
99 5″ x 2 1/2″ x 0.150″ 127mm x 63.5mm x 3.81mm 7.150 lbs.
100 5″ x 2 1/2″ x 0.188″ 127mm x 63.5mm x 4.78mm 8.810 lbs.
101 5″ x 2 1/2″ x 0.210″ 127mm x 63.5mm x 5.33mm 10.060 lbs.
102 5″ x 2 1/2″ x 0.250″ 127mm x 63.5mm x 6.35mm 11.300 lbs.
103 5″ x 2 1/2″ x 0.313″ 127mm x 63.5mm x 7.95mm 13.800 lbs.
104 5″ x 2 1/2″ x 0.375 127mm x 63.5mm x 9.53mm 16.000 lbs.
105 5″ x 3″ 127mm x 76.2mm
106 5″ x 3″ x 0.125″ 127mm x 76.2mm x 3.18mm 6.460 lbs.
107 5″ x 3″ x 0.134″ 127mm x 76.2mm x 3.40mm 6.890 lbs.
108 5″ x 3″ x 0.150″ 127mm x 76.2mm x 3.81mm 7.660 lbs.
109 5″ x 3″ x 0.188″ 127mm x 76.2mm x 4.78mm 9.450 lbs.
110 5″ x 3″ x 0.210″ 127mm x 76.2mm x 5.33mm 10.510 lbs.
111 5″ x 3″ x 0.250″ 127mm x 76.2mm x 6.35mm 12.210 lbs.
112 5″ x 3″ x 0.313″ 127mm x 76.2mm x 7.95mm 14.830 lbs.
113 5″ x 3″ x 0.375 127mm x 76.2mm x 9.53mm 17.270 lbs.
114 5″ x 4″ 127mm x 101.6mm
115 5″ x 4″ x 0.125″ 127mm x 101.6mm x 3.18mm 7.310 lbs.
116 5″ x 4″ x 0.134″ 127mm x 101.6mm x 3.40mm 7.810 lbs.
117 5″ x 4″ x 0.150″ 127mm x 101.6mm x 3.81mm 8.699 lbs.
118 5″ x 4″ x 0.188″ 127mm x 101.6mm x 4.78mm 10.700 lbs.
119 5″ x 4″ x 0.250″ 127mm x 101.6mm x 6.35mm 13.910 lbs.
120 5″ x 4″ x 0.313″ 127mm x 101.6mm x 7.95mm 16.960 lbs.
121 5″ x 4″ x 0.375 127mm x 101.6mm x 9.53mm 19.820 lbs.
122 6″ x 2″ 152.4mm x 50.8mm
123 6″ x 2″ x 0.125″ 152.4mm x 50.8mm x 3.18mm 6.460 lbs.
124 6″ x 2″ x 0.134″ 152.4mm x 50.8mm x 3.40mm 6.890 lbs.
125 6″ x 2″ x 0.150″ 152.4mm x 50.8mm x 3.81mm 7.660 lbs.
126 6″ x 2″ x 0.188″ 152.4mm x 50.8mm x 4.78mm 9.450 lbs.
127 6″ x 2″ x 0.210″ 152.4mm x 50.8mm x 5.33mm 10.510 lbs.
128 6″ x 2″ x 0.250″ 152.4mm x 50.8mm x 6.35mm 12.210 lbs.
129 6″ x 2″ x 0.313″ 152.4mm x 50.8mm x 7.95mm 14.830 lbs.
130 6″ x 2″ x 0.375 152.4mm x 50.8mm x 9.53mm 17.270 lbs.
131 6″ x 3″ 152.4mm x 76.2mm
132 6″ x 3″ x 0.125″ 152.4mm x 76.2mm x 3.18mm 7.310 lbs.
133 6″ x 3″ x 0.134″ 152.4mm x 76.2mm x 3.40mm 7.810 lbs.
134 6″ x 3″ x 0.150″ 152.4mm x 76.2mm x 3.81mm 8.699 lbs.
135 6″ x 3″ x 0.188″ 152.4mm x 76.2mm x 4.78mm 10.700 lbs.
136 6″ x 3″ x 0.250″ 152.4mm x 76.2mm x 6.35mm 13.910 lbs.
137 6″ x 3″ x 0.313″ 152.4mm x 76.2mm x 7.95mm 16.960 lbs.
138 6″ x 3″ x 0.375 152.4mm x 76.2mm x 9.53mm 19.820 lbs.
139 6″ x 4″ 152.4mm x 101.6mm
140 6″ x 4″ x 0.150″ 152.4mm x 101.6mm x 3.81mm 9.710 lbs.
141 6″ x 4″ x 0.188″ 152.4mm x 101.6mm x 4.78mm 12.000 lbs.
142 6″ x 4″ x 0.250″ 152.4mm x 101.6mm x 6.35mm 15.620 lbs.
143 6″ x 4″ x 0.313″ 152.4mm x 101.6mm x 7.95mm 19.080 lbs.
144 6″ x 4″ x 0.375 152.4mm x 101.6mm x 9.53mm 22.370 lbs.
145 6″ x 4″ x 0.500″ 152.4mm x 101.6mm x 12.70mm 28.430 lbs.
146 7″ x 2″ 177.8mm x 50.8mm
147 7″ x 2″ x 0.125″ 177.8mm x 50.8mm x 3.18mm 7.310 lbs.
148 7″ x 2″ x 0.134″ 177.8mm x 50.8mm x 3.40mm 7.810 lbs.
149 7″ x 2″ x 0.150″ 177.8mm x 50.8mm x 3.81mm 8.699 lbs.
150 7″ x 2″ x 0.188″ 177.8mm x 50.8mm x 4.78mm 10.700 lbs.
151 7″ x 2″ x 0.250″ 177.8mm x 50.8mm x 6.35mm 13.910 lbs.
152 7″ x 2″ x 0.313″ 177.8mm x 50.8mm x 7.95mm 16.960 lbs.
153 7″ x 2″ x 0.375 177.8mm x 50.8mm x 9.53mm 19.820 lbs.
154 7″ x 3″ 177.8mm x 76.2mm
155 7″ x 3″ x 0.150″ 177.8mm x 76.2mm x 3.81mm 9.710 lbs.
156 7″ x 3″ x 0.188″ 177.8mm x 76.2mm x 4.78mm 12.000 lbs.
157 7″ x 3″ x 0.250″ 177.8mm x 76.2mm x 6.35mm 15.620 lbs.
158 7″ x 3″ x 0.313″ 177.8mm x 76.2mm x 7.95mm 19.080 lbs.
159 7″ x 3″ x 0.375 177.8mm x 76.2mm x 9.53mm 22.370 lbs.
160 7″ x 3″ x 0.500″ 177.8mm x 76.2mm x 12.70mm 28.430 lbs.
161 7″ x 4″ 177.8mm x 101.6mm
162 7″ x 4″ x 0.188″ 177.8mm x 101.6mm x 4.78mm 13.280 lbs.
163 7″ x 4″ x 0.250″ 177.8mm x 101.6mm x 6.35mm 17.320 lbs.
164 7″ x 4″ x 0.313″ 177.8mm x 101.6mm x 7.95mm 21.180 lbs.
165 7″ x 4″ x 0.375 177.8mm x 101.6mm x 9.53mm 24.920 lbs.
166 7″ x 5″ 177.8mm x 127mm
167 7″ x 5″ x 0.188″ 177.8mm x 127mm x 4.78mm 14.560 lbs.
168 7″ x 5″ x 0.250″ 177.8mm x 127mm x 6.35mm 19.020 lbs.
169 7″ x 5″ x 0.313″ 177.8mm x 127mm x 7.95mm 23.330 lbs.
170 7″ x 5″ x 0.375 177.8mm x 127mm x 9.53mm 27.480 lbs.
171 7″ x 5″ x 0.438″ 177.8mm x 127mm x 11.13mm 31.500 lbs.
172 7″ x 5″ x 0.500″ 177.8mm x 127mm x 12.70mm 35.240 lbs.
173 7″ x 5″ x 0.625″ 177.8mm x 127mm x 15.88mm 42.260 lbs.
174 8″ x 2″ 203.2mm x 50.8mm
175 8″ x 2″ x 0.150″ 203.2mm x 50.8mm x 3.81mm 9.710 lbs.
176 8″ x 2″ x 0.188″ 203.2mm x 50.8mm x 4.78mm 12.000 lbs.
177 8″ x 2″ x 0.250″ 203.2mm x 50.8mm x 6.35mm 15.620 lbs.
178 8″ x 2″ x 0.313″ 203.2mm x 50.8mm x 7.95mm 19.080 lbs.
179 8″ x 2″ x 0.375 203.2mm x 50.8mm x 9.53mm 22.370 lbs.
180 8″ x 2″ x 0.500″ 203.2mm x 50.8mm x 12.70mm 28.430 lbs.
181 8″ x 3″ 203.2mm x 76.2mm
182 8″ x 3″ x 0.188″ 203.2mm x 76.2mm x 4.78mm 13.280 lbs.
183 8″ x 3″ x 0.250″ 203.2mm x 76.2mm x 6.35mm 17.320 lbs.
184 8″ x 3″ x 0.313″ 203.2mm x 76.2mm x 7.95mm 21.180 lbs.
185 8″ x 3″ x 0.375 203.2mm x 76.2mm x 9.53mm 24.920 lbs.
186 8″ x 4″ 203.2mm x 101.6mm
187 8″ x 4″ x 0.188″ 203.2mm x 101.6mm x 4.78mm 14.560 lbs.
188 8″ x 4″ x 0.250″ 203.2mm x 101.6mm x 6.35mm 19.020 lbs.
189 8″ x 4″ x 0.313″ 203.2mm x 101.6mm x 7.95mm 23.330 lbs.
190 8″ x 4″ x 0.375 203.2mm x 101.6mm x 9.53mm 27.480 lbs.
191 8″ x 4″ x 0.438″ 203.2mm x 101.6mm x 11.13mm 31.500 lbs.
192 8″ x 4″ x 0.500″ 203.2mm x 101.6mm x 12.70mm 35.240 lbs.
193 8″ x 4″ x 0.625″ 203.2mm x 101.6mm x 15.88mm 42.260 lbs.
194 8″ x 6″ 203.2mm x 152.4mm
195 8″ x 6″ x 0.188″ 203.2mm x 152.4mm x 4.78mm 17.130 lbs.
196 8″ x 6″ x 0.250″ 203.2mm x 152.4mm x 6.35mm 22.420 lbs.
197 8″ x 6″ x 0.313″ 203.2mm x 152.4mm x 7.95mm 27.630 lbs.
198 8″ x 6″ x 0.375 203.2mm x 152.4mm x 9.53mm 32.580 lbs.
199 8″ x 6″ x 0.438″ 203.2mm x 152.4mm x 11.13mm 37.500 lbs.
200 8″ x 6″ x 0.500″ 203.2mm x 152.4mm x 12.70mm 42.050 lbs.
201 8″ x 6″ x 0.625″ 203.2mm x 152.4mm x 15.88mm 50.760 lbs.
202 9″ x 3″ 228.6mm x 76.2mm
203 9″ x 3″ x 0.188″ 228.6mm x 76.2mm x 4.78mm 14.560 lbs.
204 9″ x 3″ x 0.250″ 228.6mm x 76.2mm x 6.35mm 19.020 lbs.
205 9″ x 3″ x 0.313″ 228.6mm x 76.2mm x 7.95mm 23.330 lbs.
206 9″ x 3″ x 0.375 228.6mm x 76.2mm x 9.53mm 27.480 lbs.
207 9″ x 3″ x 0.438″ 228.6mm x 76.2mm x 11.13mm 31.500 lbs.
208 9″ x 3″ x 0.500″ 228.6mm x 76.2mm x 12.70mm 35.240 lbs.
209 9″ x 3″ x 0.625″ 228.6mm x 76.2mm x 15.88mm 42.260 lbs.
210 9″ x 5″ 203.2mm x 127mm
211 9″ x 5″ x 0.188″ 203.2mm x 127mm x 4.78mm 17.130 lbs.
212 9″ x 5″ x 0.250″ 203.2mm x 127mm x 6.35mm 22.420 lbs.
213 9″ x 5″ x 0.313″ 203.2mm x 127mm x 7.95mm 27.630 lbs.
214 9″ x 5″ x 0.375 203.2mm x 127mm x 9.53mm 32.580 lbs.
215 9″ x 5″ x 0.438″ 203.2mm x 127mm x 11.13mm 37.500 lbs.
216 9″ x 5″ x 0.500″ 203.2mm x 127mm x 12.70mm 42.050 lbs.
217 9″ x 5″ x 0.625″ 203.2mm x 127mm x 15.88mm 50.760 lbs.
218 9″ x 7″ 228.6mm x 177.8mm
219 9″ x 7″ x 0.188″ 228.6mm x 177.8mm x 4.78mm 19.630 lbs.
220 9″ x 7″ x 0.250″ 228.6mm x 177.8mm x 6.35mm 25.820 lbs.
221 9″ x 7″ x 0.313″ 228.6mm x 177.8mm x 7.95mm 31.840 lbs.
222 9″ x 7″ x 0.375 228.6mm x 177.8mm x 9.53mm 37.690 lbs.
223 9″ x 7″ x 0.438″ 228.6mm x 177.8mm x 11.13mm 43.400 lbs.
224 9″ x 7″ x 0.500″ 228.6mm x 177.8mm x 12.70mm 48.850 lbs.
225 9″ x 7″ x 0.625″ 228.6mm x 177.8mm x 15.88mm 59.320 lbs.
226 10″ x 2″ 254mm x 50.8mm
227 10″ x 2″ x 0.188″ 254mm x 50.8mm x 4.78mm 14.560 lbs.
228 10″ x 2″ x 0.250″ 254mm x 50.8mm x 6.35mm 19.020 lbs.
229 10″ x 2″ x 0.313″ 254mm x 50.8mm x 7.95mm 23.330 lbs.
230 10″ x 2″ x 0.375 254mm x 50.8mm x 9.53mm 27.480 lbs.
231 10″ x 2″ x 0.438″ 254mm x 50.8mm x 11.13mm 31.500 lbs.
232 10″ x 2″ x 0.500″ 254mm x 50.8mm x 12.70mm 35.240 lbs.
233 10″ x 2″ x 0.625″ 254mm x 50.8mm x 15.88mm 42.260 lbs.
234 10″ x 4″ 254mm x 101.6mm
235 10″ x 4″ x 0.188″ 254mm x 101.6mm x 4.78mm 17.130 lbs.
236 10″ x 4″ x 0.250″ 254mm x 101.6mm x 6.35mm 22.420 lbs.
237 10″ x 4″ x 0.313″ 254mm x 101.6mm x 7.95mm 27.630 lbs.
238 10″ x 4″ x 0.375 254mm x 101.6mm x 9.53mm 32.580 lbs.
239 10″ x 4″ x 0.438″ 254mm x 101.6mm x 11.13mm 37.500 lbs.
240 10″ x 4″ x 0.500″ 254mm x 101.6mm x 12.70mm 42.050 lbs.
241 10″ x 4″ x 0.625″ 254mm x 101.6mm x 15.88mm 50.760 lbs.
242 10″ x 6″ 254mm x 152.4mm
243 10″ x 6″ x 0.188″ 254mm x 152.4mm x 4.78mm 19.630 lbs.
244 10″ x 6″ x 0.250″ 254mm x 152.4mm x 6.35mm 25.820 lbs.
245 10″ x 6″ x 0.313″ 254mm x 152.4mm x 7.95mm 31.840 lbs.
246 10″ x 6″ x 0.375 254mm x 152.4mm x 9.53mm 37.690 lbs.
247 10″ x 6″ x 0.438″ 254mm x 152.4mm x 11.13mm 43.400 lbs.
248 10″ x 6″ x 0.500″ 254mm x 152.4mm x 12.70mm 48.850 lbs.
249 10″ x 6″ x 0.625″ 254mm x 152.4mm x 15.88mm 59.320 lbs.
250 10″ x 8″ 254mm x 203.2mm
251 10″ x 8″ x 0.188″ 254mm x 203.2mm x 4.78mm 22.180 lbs.
252 10″ x 8″ x 0.250″ 254mm x 203.2mm x 6.35mm 29.230 lbs.
253 10″ x 8″ x 0.313″ 254mm x 203.2mm x 7.95mm 36.100 lbs.
254 10″ x 8″ x 0.375 254mm x 203.2mm x 9.53mm 42.790 lbs.
255 10″ x 8″ x 0.500″ 254mm x 203.2mm x 12.70mm 55.660 lbs.
256 12″ x 2″ 304.8mm x 50.8mm
257 12″ x 2″ x 0.188″ 304.8mm x 50.8mm x 4.78mm 17.130 lbs.
258 12″ x 2″ x 0.250″ 304.8mm x 50.8mm x 6.35mm 22.420 lbs.
259 12″ x 2″ x 0.313″ 304.8mm x 50.8mm x 7.95mm 27.630 lbs.
260 12″ x 2″ x 0.375 304.8mm x 50.8mm x 9.53mm 32.580 lbs.
261 12″ x 2″ x 0.438″ 304.8mm x 50.8mm x 11.13mm 37.500 lbs.
262 12″ x 2″ x 0.500″ 304.8mm x 50.8mm x 12.70mm 42.050 lbs.
263 12″ x 2″ x 0.625″ 304.8mm x 50.8mm x 15.88mm 50.760 lbs.
264 12″ x 4″ 304.8mm x 101.6mm
265 12″ x 4″ x 0.188″ 304.8mm x 101.6mm x 4.78mm 19.630 lbs.
266 12″ x 4″ x 0.250″ 304.8mm x 101.6mm x 6.35mm 25.820 lbs.
267 12″ x 4″ x 0.313″ 304.8mm x 101.6mm x 7.95mm 31.840 lbs.
268 12″ x 4″ x 0.375 304.8mm x 101.6mm x 9.53mm 37.690 lbs.
269 12″ x 4″ x 0.438″ 304.8mm x 101.6mm x 11.13mm 43.400 lbs.
270 12″ x 4″ x 0.500″ 304.8mm x 101.6mm x 12.70mm 48.850 lbs.
271 12″ x 4″ x 0.625″ 304.8mm x 101.6mm x 15.88mm 59.320 lbs.
272 12″ x 6″ 304.8mm x 152.4mm
273 12″ x 6″ x 0.188″ 304.8mm x 152.4mm x 4.78mm 22.180 lbs.
274 12″ x 6″ x 0.250″ 304.8mm x 152.4mm x 6.35mm 29.230 lbs.
275 12″ x 6″ x 0.313″ 304.8mm x 152.4mm x 7.95mm 36.100 lbs.
276 12″ x 6″ x 0.375 304.8mm x 152.4mm x 9.53mm 42.790 lbs.
277 12″ x 6″ x 0.500″ 304.8mm x 152.4mm x 12.70mm 55.660 lbs.
278 12″ x 8″ 304.8mm x 203.2mm
279 12″ x 8″ x 0.250″ 304.8mm x 203.2mm x 6.35mm 32.630 lbs.
280 12″ x 8″ x 0.313″ 304.8mm x 203.2mm x 7.95mm 40.350 lbs.
281 12″ x 8″ x 0.375 304.8mm x 203.2mm x 9.53mm 47.900 lbs.
282 12″ x 8″ x 0.438″ 304.8mm x 203.2mm x 11.13mm 55.400 lbs.
283 12″ x 8″ x 0.500″ 304.8mm x 203.2mm x 12.70mm 62.460 lbs.
284 12″ x 8″ x 0.625″ 304.8mm x 203.2mm x 15.88mm 76.330 lbs.
285 14″ x 4″ 355.6mm x 101.6mm
286 14″ x 4″ x 0.188″ 355.6mm x 101.6mm x 4.78mm 22.180 lbs.
287 14″ x 4″ x 0.250″ 355.6mm x 101.6mm x 6.35mm 29.230 lbs.
288 14″ x 4″ x 0.313″ 355.6mm x 101.6mm x 7.95mm 36.100 lbs.
289 14″ x 4″ x 0.375 355.6mm x 101.6mm x 9.53mm 42.790 lbs.
290 14″ x 4″ x 0.500″ 355.6mm x 101.6mm x 12.70mm 55.660 lbs.
291 14″ x 6″ 355.6mm x 152.4mm
292 14″ x 6″ x 0.250″ 355.6mm x 152.4mm x 6.35mm 32.630 lbs.
293 14″ x 6″ x 0.313″ 355.6mm x 152.4mm x 7.95mm 40.350 lbs.
294 14″ x 6″ x 0.375 355.6mm x 152.4mm x 9.53mm 47.900 lbs.
295 14″ x 6″ x 0.438″ 355.6mm x 152.4mm x 11.13mm 55.400 lbs.
296 14″ x 6″ x 0.500″ 355.6mm x 152.4mm x 12.70mm 62.460 lbs.
297 14″ x 6″ x 0.625″ 355.6mm x 152.4mm x 15.88mm 76.330 lbs.
298 16″ x 4″ 406.4mm x 101.6mm
299 16″ x 4″ x 0.250″ 406.4mm x 101.6mm x 6.35mm 32.630 lbs.
300 16″ x 4″ x 0.313″ 406.4mm x 101.6mm x 7.95mm 40.350 lbs.
301 16″ x 4″ x 0.375 406.4mm x 101.6mm x 9.53mm 47.900 lbs.
302 16″ x 4″ x 0.438″ 406.4mm x 101.6mm x 11.13mm 55.400 lbs.
303 16″ x 4″ x 0.500″ 406.4mm x 101.6mm x 12.70mm 62.460 lbs.
304 16″ x 4″ x 0.625″ 406.4mm x 101.6mm x 15.88mm 76.330 lbs.
Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
Download the List of the Tubes

Back-to-Top

Return to all Products

 Browse All Technical Specifications & Available Dimensions

The form of the Round Tube, View 2

ROUND TUBES (HSS)

HOT ROLLED (HSS) HRPO CREW

Standards (ASTM): A500 B & C, A513

Available dimensions: 20′, 24′ & 48′ or cut to size

The Round Steel Tube is a welded structural steel tube with an internal weld seam present. Available in A513 or A500 Grade B depending on its size and wall thickness.

APPLICATION and USAGE of the ROUND TUBES:

The Round Steel Tube is widely used in industrial maintenance, agricultural implements, transportation equipment, ornamental, etc. HSS Tubes must fulfill a structural function in the context of an engineering concept. The physical properties and the commercial quality of these are guaranteed.

  • Construction:

    • Structural Supports:  Used in building frameworks, round tubes offer superior strength and durability.

    • Scaffolding:   Ideal for creating stable scaffolding structures due to their ability to evenly distribute weight and pressure.

  • Automotive Industry:

    • Roll Cages and Chassis: Provide enhanced protection and rigidity in vehicles.

    • Exhaust Systems:  Their ability to withstand high temperatures makes them suitable for exhaust pipes.

  • Manufacturing and Engineering:

    • Machinery Components:  Used in the production of different machine parts due to their strength and reliability.

    • Hydraulic Systems:  Often employed in hydraulic machinery for their ability to handle high-pressure fluid transfer.

  • Furniture and Appliances:

    • Furniture Frames: Popular in making strong yet lightweight furniture frames.

    • Appliance Frameworks: Utilized in the internal structures of various household appliances.

  • Utilities and Infrastructure:

    • Pipeline Systems: Used for transporting liquids and gases, especially in smaller quantities compared to pipes.

    • Signposts and Lighting Poles: Their durability and ease of installation make them perfect for outdoor use.

  • Aerospace and Marine:

    • Aircraft Structures: Contribute to the lightweight yet sturdy framework of aircraft.

    • Marine Applications: Ideal for use in harsh marine environments due to their resistance to corrosion and high strength.

  • Medicine:

    • Medical Equipment: Utilized in making durable and corrosion-resistant surgical tools and hospital beds.

    • Implants and Prosthetics: Preferred for their structural integrity and reliability in different conditions.

    • Sanitary Uses: Ideal for applications requiring high hygiene standards due to their smooth surface and easy sterilization.

Round Tubes

wdt_ID Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
1 1.000″ of diameter 25.4mm of diameter
2 1.000″ x 0.065″ 25.4mm x 1.65mm 0.649 lbs.
3 1.000″ x 0.083″ 25.4mm x 2.11mm 0.813 lbs.
4 1.000″ x 0.095″ 25.4mm x 2.41mm 0.920 lbs.
5 1.050″ of diameter 26.7mm of diameter
6 1.050″ x 0.095″ 26.7mm x 2.41mm 0.950 lbs.
7 1.050″ x 0.100″ 26.7mm x 2.54mm 1.010 lbs.
8 1.050″ x 0.110″ 26.7mm x 2.79mm 1.110 lbs.
9 1.050″ x 0.113″ 26.7mm x 2.87mm 1.130 lbs.
10 1.050″ x 0.125″ 26.7mm x 3.18mm 1.230 lbs.
11 1.250″ of diameter 31.8mm of diameter
12 1.250″ x 0.100″ 31.8mm x 2.54mm 1.230 lbs.
13 1.250″ x 0.125″ 31.8mm x 3.18mm 1.510 lbs.
14 1.250″ x 0.134″ 31.8mm x 3.40mm 1.600 lbs.
15 1.315″ of diameter 33.4mm of diameter
16 1.315″ x 0.100″ 33.4mm x 2.54mm 1.300 lbs.
17 1.315″ x 0.110″ 33.4mm x 2.79mm 1.410 lbs.
18 1.315″ x 0.125″ 33.4mm x 3.18mm 1.590 lbs.
19 1.660″ of diameter 42.2mm of diameter
20 1.660″ x 0.100″ 42.2mm x 2.54mm 1.670 lbs.
21 1.660″ x 0.110″ 42.2mm x 2.79mm 1.820 lbs.
22 1.660″ x 0.125″ 42.2mm x 3.18mm 2.050 lbs.
23 1.660″ x 0.134″ 42.2mm x 3.40mm 2.170 lbs.
24 1.875″ of diameter 47.6mm of diameter
25 1.875″ x 0.100″ 47.6mm x 2.54mm 1.900 lbs.
26 1.875″ x 0.125″ 47.6mm x 3.18mm 2.340 lbs.
27 1.900″ of diameter 48.3mm of diameter
28 1.900″ x 0.100″ 48.3mm x 2.54mm 1.920 lbs.
29 1.900″ x 0.110″ 48.3mm x 2.79mm 2.100 lbs.
30 1.900″ x 0.125″ 48.3mm x 3.18mm 2.380 lbs.
31 1.900″ x 0.150″ 48.3mm x 3.81mm 2.800 lbs.
32 1.900″ x 0.188″ 48.3mm x 4.78mm 3.430 lbs.
33 1.900″ x 0.250″ 48.3mm x 6.35mm 4.410 lbs.
34 2.000″ of diameter 50.8mm of diameter
35 2.000″ x 0.100″ 50.8mm x 2.54mm 2.030 lbs.
36 2.000″ x 0.125″ 50.8mm x 3.18mm 2.500 lbs.
37 2.000″ x 0.150″ 50.8mm x 3.81mm 2.960 lbs.
38 2.000″ x 0.188″ 50.8mm x 4.78mm 3.640 lbs.
39 2.375″ of diameter 60.3mm of diameter
40 2.375″ x 0.100″ 60.3mm x 2.54mm 2.430 lbs.
41 2.375″ x 0.125″ 60.3mm x 3.18mm 3.010 lbs.
42 2.375″ x 0.150″ 60.3mm x 3.81mm 3.570 lbs.
43 2.375″ x 0.188″ 60.3mm x 4.78mm 4.400 lbs.
44 2.375″ x 0.250″ 60.3mm x 6.35mm 5.680 lbs.
45 2.500″ of diameter 63.5mm of diameter
46 2.500″ x 0.150″ 63.5mm x 3.81mm 3.770 lbs.
47 2.500″ x 0.188″ 63.5mm x 4.78mm 4.650 lbs.
48 2.500″ x 0.250″ 63.5mm x 6.35mm 6.020 lbs.
49 2.750″ of diameter 69.9mm of diameter
50 2.750″ x 0.150″ 69.9mm x 3.81mm 4.180 lbs.
51 2.750″ x 0.188″ 69.9mm x 4.78mm 5.150 lbs.
52 2.750″ x 0.250″ 69.9mm x 6.35mm 6.690 lbs.
53 2.875″ of diameter 73.0mm of diameter
54 2.875″ x 0.150″ 73.0mm x 3.81mm 4.370 lbs.
55 2.875″ x 0.188″ 73.0mm x 4.78mm 5.400 lbs.
56 2.875″ x 0.250″ 73.0mm x 6.35mm 7.010 lbs.
57 3.000″ of diameter 76.2mm of diameter
58 3.000″ x 0.134″ 76.2mm x 3.40mm 4.100 lbs.
59 3.000″ x 0.150″ 76.2mm x 3.81mm 4.570 lbs.
60 3.000″ x 0.188″ 76.2mm x 4.78mm 5.660 lbs.
61 3.000″ x 0.250″ 76.2mm x 6.35mm 7.350 lbs.
62 3.500″ of diameter 88.9mm of diameter
63 3.500″ x 0.150″ 88.9mm x 3.81mm 5.370 lbs.
64 3.500″ x 0.188″ 88.9mm x 4.78mm 6.660 lbs.
65 3.500″ x 0.250″ 88.9mm x 6.35mm 8.690 lbs.
66 3.500″ x 0.313″ 88.9mm x 7.95mm 10.660 lbs.
67 3.750″ of diameter 95.3mm of diameter
68 3.750″ x 0.150″ 95.3mm x 3.81mm 5.780 lbs.
69 3.750″ x 0.188″ 95.3mm x 4.78mm 7.160 lbs.
70 3.750″ x 0.210″ 95.3mm x 5.33mm 7.950 lbs.
71 3.750″ x 0.250″ 95.3mm x 6.35mm 9.360 lbs.
72 3.750″ x 0.313″ 95.3mm x 7.95mm 11.500 lbs.
73 4.000″ of diameter 101,6mm of diameter
74 4.000″ x 0.125″ 101,6mm x 3.18mm 5.170 lbs.
75 4.000″ x 0.134″ 101,6mm x 3.40mm 5.530 lbs.
76 4.000″ x 0.150″ 101,6mm x 3.81mm 6.170 lbs.
77 4.000″ x 0.188″ 101,6mm x 4.78mm 7.670 lbs.
78 4.000″ x 0.210″ 101,6mm x 5.33mm 8.510 lbs.
79 4.000″ x 0.250″ 101,6mm x 6.35mm 10.020 lbs.
80 4.000″ x 0.313″ 101,6mm x 7.95mm 12.340 lbs.
81 4.000″ x 0.375 101,6mm x 9.53mm 14.520 lbs.
82 4.500″ of diameter 114.3mm of diameter
83 4.500″ x 0.125″ 114.3mm x 3.18mm 5.850 lbs.
84 4.500″ x 0.188″ 114.3mm x 4.78mm 8.680 lbs.
85 4.500″ x 0.250″ 114.3mm x 6.35mm 11.360 lbs.
86 4.500″ x 0.313″ 114.3mm x 7.95mm 14.010 lbs.
87 4.500″ x 0.375 114.3mm x 9.53mm 16.540 lbs.
88 4.750″ of diameter 120.7mm of diameter
89 4.750″ x 0.188″ 120.7mm x 4.78mm 9.140 lbs.
90 4.750″ x 0.250″ 120.7mm x 6.35mm 12.000 lbs.
91 4.750″ x 0.313″ 120.7mm x 7.95mm 14.800 lbs.
92 5.000″ of diameter 127mm of diameter
93 5.000″ x 0.125″ 127mm x 3.18mm 6.840 lbs.
94 5.000″ x 0.150″ 127mm x 3.81mm 7.780 lbs.
95 5.000″ x 0.188″ 127mm x 4.78mm 9.670 lbs.
96 5.000″ x 0.250″ 127mm x 6.35mm 12.690 lbs.
97 5.000″ x 0.313″ 127mm x 7.95mm 15.690 lbs.
98 5.000″ x 0.375 127mm x 9.53mm 18.540 lbs.
99 5.562″ of diameter 141.3mm of diameter
100 5.562″ x 0.188″ 141.3mm x 4.78mm 10.800 lbs.
101 5.562″ x 0.250″ 141.3mm x 6.35mm 14.200 lbs.
102 5.562″ x 0.313″ 141.3mm x 7.95mm 17.600 lbs.
103 5.562″ x 0.375 141.3mm x 9.53mm 20.800 lbs.
104 6.000″ of diameter 152.4mm of diameter
105 6.000″ x 0.125″ 152.4mm x 3.18mm 7.840 lbs.
106 6.000″ x 0.188″ 152.4mm x 4.78mm 11.680 lbs.
107 6.000″ x 0.250″ 152.4mm x 6.35mm 15.370 lbs.
108 6.000″ x 0.313″ 152.4mm x 7.95mm 19.030 lbs.
109 6.000″ x 0.375 152.4mm x 9.53mm 22.550 lbs.
110 6.625″ of diameter 168.3mm of diameter
111 6.625″ x 0.125″ 168.3mm x 3.18mm 8.680 lbs.
112 6.625″ x 0.188″ 168.3mm x 4.78mm 13.000 lbs.
113 6.625″ x 0.250″ 168.3mm x 6.35mm 17.020 lbs.
114 6.625″ x 0.313″ 168.3mm x 7.95mm 21.100 lbs.
115 6.625″ x 0.375 168.3mm x 9.53mm 25.100 lbs.
116 7.000″ of diameter 177.8mm of diameter
117 7.000″ x 0.188″ 177.8mm x 4.78mm 13.690 lbs.
118 7.000″ x 0.250″ 177.8mm x 6.35mm 18.040 lbs.
119 7.000″ x 0.313″ 177.8mm x 7.95mm 22.370 lbs.
120 7.000″ x 0.375 177.8mm x 9.53mm 26.560 lbs.
121 7.500″ of diameter 190.5mm of diameter
122 7.500″ x 0.188″ 190.5mm x 4.78mm 14.700 lbs.
123 7.500″ x 0.250″ 190.5mm x 6.35mm 19.400 lbs.
124 7.500″ x 0.313″ 190.5mm x 7.95mm 24.000 lbs.
125 7.500″ x 0.375 190.5mm x 9.53mm 28.500 lbs.
126 8.625″ of diameter 219.1mm of diameter
127 8.625″ x 0.188″ 219.1mm x 4.78mm 16.940 lbs.
128 8.625″ x 0.250″ 219.1mm x 6.35mm 22.360 lbs.
129 8.625″ x 0.313″ 219.1mm x 7.95mm 27.790 lbs.
130 8.625″ x 0.375 219.1mm x 9.53mm 33.040 lbs.
131 8.625″ x 0.438″ 219.1mm x 11.13mm 38.400 lbs.
132 8.625″ x 0.500″ 219.1mm x 12.70mm 43.390 lbs.
133 10.750″ of diameter 273.1mm of diameter
134 10.750″ x 0.250″ 273.1mm x 6.35mm 28.000 lbs.
135 10.750″ x 0.313″ 273.1mm x 7.95mm 34.800 lbs.
136 10.750″ x 0.375 273.1mm x 9.53mm 41.600 lbs.
137 10.750″ x 0.438″ 273.1mm x 11.13mm 48.200 lbs.
138 10.750″ x 0.500″ 273.1mm x 12.70mm 54.700 lbs.
139 12.750″ of diameter 323.9mm of diameter
140 12.750″ x 0.250″ 323.9mm x 6.35mm 33.400 lbs.
141 12.750″ x 0.313″ 323.9mm x 7.95mm 41.600 lbs.
142 12.750″ x 0.375 323.9mm x 9.53mm 49.600 lbs.
143 12.750″ x 0.438″ 323.9mm x 11.13mm 57.500 lbs.
144 12.750″ x 0.500″ 323.9mm x 12.70mm 65.400 lbs.
145 14.000″ of diameter 355.6mm of diameter
146 14.000″ x 0.250″ 355.6mm x 6.35mm 36.800 lbs.
147 14.000″ x 0.313″ 355.6mm x 7.95mm 45.800 lbs.
148 14.000″ x 0.375 355.6mm x 9.53mm 54.700 lbs.
149 14.000″ x 0.438″ 355.6mm x 11.13mm 63.500 lbs.
150 14.000″ x 0.500″ 355.6mm x 12.70mm 72.200 lbs.
151 16.000″ of diameter 406.4mm of diameter
152 16.000″ x 0.250″ 406.4mm x 6.35mm 42.100 lbs.
153 16.000″ x 0.313″ 406.4mm x 7.95mm 52.500 lbs.
154 16.000″ x 0.375 406.4mm x 9.53mm 62.700 lbs.
155 16.000″ x 0.438″ 406.4mm x 11.13mm 72.900 lbs.
156 16.000″ x 0.500″ 406.4mm x 12.70mm 82.900 lbs.
Dimensions in Inches Dimensions in MM Weight: Lbs./Lin. Ft.
Download the List of the Tubes

Back-to-Top

Return to all Products

 Check All Technical Specifications & Available Dimensions

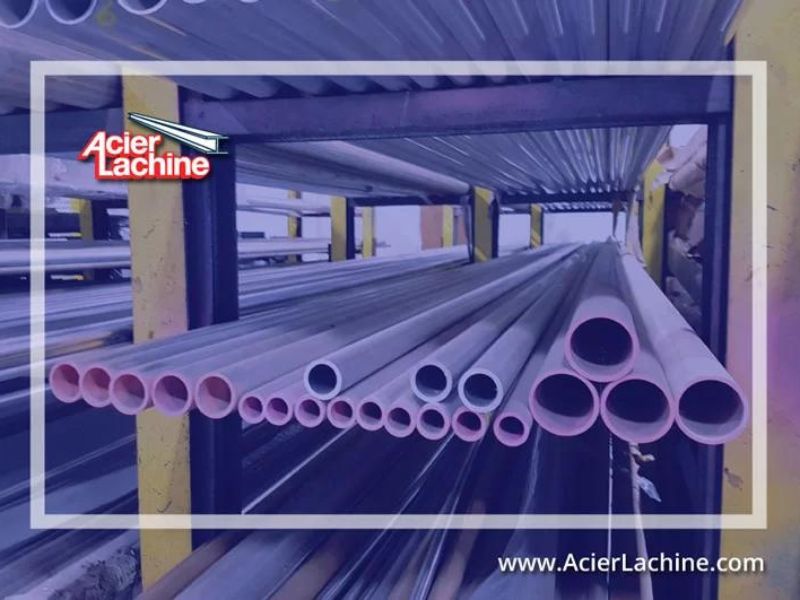

The form of Round Mechanical Tubing, View 2

ROUND MECHANICAL TUBING

DOM (Drawn Over Mandrel), CDS (Cold Drawn Seamless), HFS (Hot Finished Seamless)

Standards (ASTM): A513 type 5, A519, A519/A106

Available dimensions: from 17′ to 23’11” or cut to size

  • Aerospace:  Used in components like landing gear, wings, and control systems due to its high strength and lightweight properties.

  • Automotive and Transportation:  Employed in the manufacturing of vehicle frames, suspension systems, and other structural parts.

  • Construction:  Utilized in buildings, towers, sign supports, and structural fabrications for its durability and load-bearing capacity.

  • Oil and Gas:  Integral in drilling components and oilfield equipment.

  • Machinery: Essential for bases, supports, and various machine components in diverse industries including agriculture, solar, and appliances.

  • Solar Installations: Used in mounting systems for solar panels, providing strong and weather-resistant support that maximizes the efficiency and longevity of solar arrays.

  • Exercise Equipment:  Employed in gym equipment frames and weightlifting machines, ensuring safety, stability, and durability during rigorous use.

  • Agricultural Equipment:  It is crucial for machinery like tractors and harvesters, providing durable and robust structures that withstand harsh field conditions and heavy use.

  • Strength and Durability: Round tubing distributes pressure evenly, reducing the risk of bends, breaks, and crimping.
  • Cost-Effectiveness: Thinner walls can handle higher loads, making it an economical choice.
  • Stability: Resistant to harsh environments, ensuring longevity.
  • Ease of Fabrication: Can be cut, welded, bent, and molded into various shapes, enhancing construction efficiency.
  • Recyclability: Steel’s recyclability makes it an environmentally sustainable option.

Round Mechanical Tubing

wdt_ID Outside Diameter Inside Diameter Wall Thickness Weight: Lbs./Lin. Ft.
1 0.250″ of outside diameter Inside Diameter Wall Thickness Weight
2 0.250″ 0.152″ 0.049″ 0.105 lbs.
3 0.250″ 0.180″ 0.035″ 0.080 lbs.
4 0.250″ 0.194″ 0.028″ 0.066 lbs.
5 0.313″ of outside diameter Inside Diameter Wall Thickness Weight
6 0.313″ 0.215″ 0.049″ 0.138 lbs.
7 0.313″ 0.243″ 0.035″ 0.104 lbs.
8 0.313″ 0.257″ 0.028″ 0.085 lbs.
9 0.375″ of outside diameter Inside Diameter Wall Thickness Weight
10 0.375″ 0.135″ 0.120″ 0.327 lbs.
11 0.375″ 0.183″ 0.065″ 0.172 lbs.
12 0.375″ 0.209″ 0.083″ 0.259 lbs.
13 0.375″ 0.245″ 0.065″ 0.215 lbs.
14 0.375″ 0.277″ 0.049″ 0.171 lbs.
15 0.375″ 0.305″ 0.035″ 0.127 lbs.
16 0.375″ 0.319″ 0.028″ 0.104 lbs.
17 0.500″ of outside diameter Inside Diameter Wall Thickness Weight
18 0.500″ 0.188″ 0.156″ 0.573 lbs.
19 0.500″ 0.260″ 0.120″ 0.487 lbs.
20 0.500″ 0.282″ 0.109″ 0.455 lbs.
21 0.500″ 0.334″ 0.083″ 0.370 lbs.
22 0.500″ 0.370″ 0.065″ 0.302 lbs.
23 0.500″ 0.384″ 0.058″ 0.274 lbs.
24 0.500″ 0.402″ 0.049″ 0.236 lbs.
25 0.500″ 0.430″ 0.035″ 0.174 lbs.
26 0.500″ 0.444″ 0.028″ 0.141 lbs.
27 0.563″ of outside diameter Inside Diameter Wall Thickness Weight
28 0.563″ 0.323″ 0.120″ 0.568 lbs.
29 0.563″ 0.397″ 0.083″ 0.481 lbs.
30 0.563″ 0.433″ 0.065″ 0.346 lbs.
31 0.563″ 0.493″ 0.035″ 0.197 lbs.
32 0.625″ of outside diameter Inside Diameter Wall Thickness Weight
33 0.625″ 0.249″ 0.188″ 0.877 lbs.
34 0.625″ 0.313″ 0.156″ 0.781 lbs.
35 0.625″ 0.357″ 0.134″ 0.703 lbs.
36 0.625″ 0.385″ 0.120″ 0.647 lbs.
37 0.625″ 0.407″ 0.109″ 0.601 lbs.
38 0.625″ 0.459″ 0.083″ 0.481 lbs.
39 0.625″ 0.495″ 0.065″ 0.389 lbs.
40 0.625″ 0.509″ 0.058″ 0.351 lbs.
41 0.625″ 0.527″ 0.049″ 0.301 lbs.
42 0.625″ 0.555″ 0.035″ 0.221 lbs.
43 0.688″ of outside diameter Inside Diameter Wall Thickness Weight
44 0.688″ 0.448″ 0.120″ 0.728 lbs.
45 0.688″ 0.470″ 0.109″ 0.674 lbs.
46 0.688″ 0.498″ 0.095″ 0.602 lbs.
47 0.688″ 0.522″ 0.083″ 0.536 lbs.
48 0.688″ 0.558″ 0.065″ 0.433 lbs.
49 0.750″ of outside diameter Inside Diameter Wall Thickness Weight
50 0.750″ 0.250″ 0.250″ 1.335 lbs.
51 0.750″ 0.312″ 0.219″ 1.242 lbs.
52 0.750″ 0.374″ 0.188″ 1.128 lbs.
53 0.750″ 0.438″ 0.156″ 0.990 lbs.
54 0.750″ 0.482″ 0.134″ 0.882 lbs.
55 0.750″ 0.510″ 0.120″ 0.807 lbs.
56 0.750″ 0.532″ 0.109″ 0.746 lbs.
57 0.750″ 0.560″ 0.095″ 0.665 lbs.
58 0.750″ 0.584″ 0.083″ 0.591 lbs.
59 0.750″ 0.620″ 0.065″ 0.476 lbs.
60 0.750″ 0.652″ 0.049″ 0.367 lbs.
61 0.750″ 0.680″ 0.035″ 0.267 lbs.
62 0.813″ of outside diameter Inside Diameter Wall Thickness Weight
63 0.813″ 0.375″ 0.250″ 1.669 lbs.
64 0.813″ 0.499″ 0.188″ 1.379 lbs.
65 0.813″ 0.563″ 0.156″ 1.198 lbs.
66 0.813″ 0.573″ 0.120″ 0.888 lbs.
67 0.813″ 0.607″ 0.134″ 1.060 lbs.
68 0.813″ 0.623″ 0.095″ 0.729 lbs.
69 0.813″ 0.635″ 0.120″ 0.968 lbs.
70 0.813″ 0.647″ 0.083″ 0.647 lbs.
71 0.813″ 0.657″ 0.109″ 0.892 lbs.
72 0.813″ 0.683″ 0.065″ 0.519 lbs.
73 0.813″ 0.685″ 0.095″ 0.791 lbs.
74 0.813″ 0.709″ 0.083″ 0.702 lbs.
75 0.813″ 0.745″ 0.065″ 0.562 lbs.
76 0.813″ 0.759″ 0.058″ 0.506 lbs.
77 0.813″ 0.777″ 0.049″ 0.432 lbs.
78 0.813″ 0.870″ 0.065″ 0.649 lbs.
79 0.813″ 0.902″ 0.049″ 0.498 lbs.
80 1.000″ of outside diameter Inside Diameter Wall Thickness Weight
81 1.000″ 0.250″ 0.375″ 2.503 lbs.
82 1.000″ 0.374″ 0.313″ 2.297 lbs.
83 1.000″ 0.500″ 0.250″ 2.003 lbs.
84 1.000″ 0.562″ 0.219″ 1.827 lbs.
85 1.000″ 0.624″ 0.188″ 1.630 lbs.
86 1.000″ 0.688″ 0.156″ 1.406 lbs.
87 1.000″ 0.732″ 0.134″ 1.239 lbs.
88 1.000″ 0.760″ 0.120″ 1.128 lbs.
89 1.000″ 0.782″ 0.109″ 1.037 lbs.
90 1.000″ 0.810″ 0.095″ 0.918 lbs.
91 1.000″ 0.834″ 0.083″ 0.813 lbs.
92 1.063″ of outside diameter Inside Diameter Wall Thickness Weight
93 1.063″ 0.563″ 0.250″ 2.170 lbs.
94 1.063″ 0.687″ 0.188″ 1.757 lbs.
95 1.063″ 0.751″ 0.156″ 1.511 lbs.
96 1.063″ 0.823″ 0.120″ 1.209 lbs.
97 1.063″ 0.845″ 0.109″ 1.111 lbs.
98 1.063″ 0.873″ 0.095″ 0.982 lbs.
99 1.063″ 0.899″ 0.083″ 0.870 lbs.
100 1.125″ of outside diameter Inside Diameter Wall Thickness Weight
101 1.125″ 0.499″ 0.313″ 2.714 lbs.
102 1.125″ 0.563″ 0.281″ 2.533 lbs.
103 1.125″ 0.625″ 0.250″ 2.336 lbs.
104 1.125″ 0.687″ 0.219″ 2.119 lbs.
105 1.125″ 0.749″ 0.188″ 1.881 lbs.
106 1.125″ 0.813″ 0.156″ 1.614 lbs.
107 1.125″ 0.857″ 0.134″ 1.418 lbs.
108 1.125″ 0.885″ 0.120″ 1.288 lbs.
109 1.125″ 0.907″ 0.109″ 1.183 lbs.
110 1.125″ 0.959″ 0.083″ 0.924 lbs.
111 1.125″ 0.995″ 0.065″ 0.736 lbs.
112 1.188″ of outside diameter Inside Diameter Wall Thickness Weight
113 1.188″ 0.688″ 0.250″ 2.504 lbs.
114 1.188″ 0.812″ 0.188″ 2.008 lbs.
115 1.188″ 1.058″ 0.065″ 0.780 lbs.
116 1.250″ of outside diameter Inside Diameter Wall Thickness Weight
117 1.250″ 0.500″ 0.375″ 3.504 lbs.
118 1.250″ 0.624″ 0.313″ 3.132 lbs.
119 1.250″ 0.750″ 0.250″ 2.670 lbs.
120 1.250″ 0.812″ 0.219″ 2.411 lbs.
121 1.250″ 0.874″ 0.188″ 2.132 lbs.
122 1.250″ 0.938″ 0.156″ 1.823 lbs.
123 1.250″ 0.982″ 0.134″ 1.597 lbs.
124 1.250″ 1.010″ 0.120″ 1.448 lbs.
125 1.250″ 1.032″ 0.109″ 1.328 lbs.
126 1.250″ 1.060″ 0.095″ 1.172 lbs.
127 1.250″ 1.084″ 0.083″ 1.034 lbs.
128 1.250″ 1.120″ 0.065″ 0.823 lbs.
129 1.313″ of outside diameter Inside Diameter Wall Thickness Weight
130 1.313″ 0.563″ 0.375″ 3.757 lbs.
131 1.313″ 0.813″ 0.250″ 2.838 lbs.
132 1.313″ 0.875″ 0.219″ 2.559 lbs.
133 1.313″ 0.937″ 0.188″ 2.259 lbs.
134 1.313″ 1.001″ 0.156″ 1.928 lbs.
135 1.313″ 1.045″ 0.134″ 1.687 lbs.
136 1.313″ 1.073″ 0.120″ 1.529 lbs.
137 1.375″ of outside diameter Inside Diameter Wall Thickness Weight
138 1.375″ 0.625″ 0.375″ 4.005 lbs.
139 1.375″ 0.749″ 0.313″ 3.550 lbs.
140 1.375″ 0.813″ 0.281″ 3.283 lbs.
141 1.375″ 0.875″ 0.250″ 3.004 lbs.
142 1.375″ 0.937″ 0.219″ 2.704 lbs.
143 1.375″ 0.999″ 0.188″ 2.383 lbs.
144 1.375″ 1.063″ 0.156″ 2.031 lbs.
145 1.375″ 1.107″ 0.134″ 1.776 lbs.
146 1.375″ 1.135″ 0.120″ 1.608 lbs.
147 1.375″ 1.185″ 0.095″ 1.299 lbs.
148 1.375″ 1.245″ 0.065″ 0.909 lbs.
149 1.375″ 1.277″ 0.049″ 0.694 lbs.
150 1.438″ of outside diameter Inside Diameter Wall Thickness Weight
151 1.438″ 0.938″ 0.250″ 3.172 lbs.
152 1.438″ 1.000″ 0.219″ 2.851 lbs.
153 1.438″ 1.062″ 0.188″ 2.510 lbs.
154 1.438″ 1.126″ 0.156″ 2.136 lbs.
155 1.500″ of outside diameter Inside Diameter Wall Thickness Weight
156 1.500″ 0.500″ 0.500″ 5.340 lbs.
157 1.500″ 0.624″ 0.438″ 4.968 lbs.
158 1.500″ 0.750″ 0.375″ 4.506 lbs.
159 1.500″ 0.874″ 0.313″ 3.968 lbs.
160 1.500″ 0.938″ 0.281″ 3.658 lbs.
161 1.500″ 1.000″ 0.250″ 3.338 lbs.
162 1.500″ 1.062″ 0.219″ 2.996 lbs.
163 1.500″ 1.124″ 0.188″ 2.634 lbs.
164 1.500″ 1.188″ 0.156″ 2.239 lbs.
165 1.500″ 1.260″ 0.120″ 1.769 lbs.
166 1.500″ 1.282″ 0.109″ 1.619 lbs.
167 1.500″ 1.310″ 0.095″ 1.426 lbs.
168 1.500″ 1.334″ 0.083″ 1.256 lbs.
169 1.500″ 1.370″ 0.065″ 0.996 lbs.
170 1.563″ of outside diameter Inside Diameter Wall Thickness Weight
171 1.563″ 0.813″ 0.375″ 4.758 lbs.
172 1.563″ 1.063″ 0.250″ 3.506 lbs.
173 1.563″ 1.251″ 0.156″ 2.344 lbs.
174 1.563″ 1.323″ 0.120″ 1.849 lbs.
175 1.625″ of outside diameter Inside Diameter Wall Thickness Weight
176 1.625″ 0.625″ 0.500″ 6.008 lbs.
177 1.625″ 0.875″ 0.375″ 5.006 lbs.
178 1.625″ 0.999″ 0.313″ 4.386 lbs.
179 1.625″ 1.063″ 0.281″ 4.033 lbs.
180 1.625″ 1.125″ 0.250″ 3.671 lbs.
181 1.625″ 1.187″ 0.219″ 3.289 lbs.
182 1.625″ 1.249″ 0.188″ 2.885 lbs.
183 1.625″ 1.313″ 0.156″ 2.447 lbs.
184 1.625″ 1.385″ 0.120″ 1.929 lbs.
185 1.625″ 1.435″ 0.095″ 1.552 lbs.
186 1.625″ 1.495″ 0.065″ 1.083 lbs.
187 1.625″ 1.527″ 0.049″ 0.825 lbs.
188 1.750″ of outside diameter Inside Diameter Wall Thickness Weight
189 1.750″ 0.750″ 0.500″ 6.675 lbs.
190 1.750″ 1.000″ 0.375″ 5.507 lbs.
191 1.750″ 1.124″ 0.313″ 4.804 lbs.
192 1.750″ 1.250″ 0.250″ 4.005 lbs.
193 1.750″ 1.312″ 0.219″ 3.581 lbs.
194 1.750″ 1.374″ 0.188″ 3.136 lbs.
195 1.750″ 1.438″ 0.156″ 2.656 lbs.
196 1.750″ 1.482″ 0.134″ 2.313 lbs.
197 1.750″ 1.510″ 0.120″ 2.089 lbs.
198 1.750″ 1.532″ 0.109″ 1.910 lbs.
199 1.750″ 1.560″ 0.095″ 1.679 lbs.
200 1.750″ 1.584″ 0.083″ 1.478 lbs.
201 1.750″ 1.620″ 0.065″ 1.170 lbs.
202 1.750″ 1.652″ 0.049″ 0.890 lbs.
203 1.875″ of outside diameter Inside Diameter Wall Thickness Weight
204 1.875″ 0.875″ 0.500″ 7.343 lbs.
205 1.875″ 0.999″ 0.438″ 6.722 lbs.
206 1.875″ 1.125″ 0.375″ 6.008 lbs.
207 1.875″ 1.249″ 0.313″ 5.222 lbs.
208 1.875″ 1.313″ 0.281″ 4.784 lbs.
209 1.875″ 1.375″ 0.250″ 4.339 lbs.
210 1.875″ 1.437″ 0.219″ 3.873 lbs.
211 1.875″ 1.499″ 0.188″ 3.387 lbs.
212 1.875″ 1.563″ 0.156″ 2.864 lbs.
213 1.875″ 1.635″ 0.120″ 2.249 lbs.
214 1.875″ 1.657″ 0.109″ 2.056 lbs.
215 1.875″ 1.685″ 0.095″ 1.806 lbs.
216 1.875″ 1.709″ 0.083″ 1.589 lbs.
217 2.000″ of outside diameter Inside Diameter Wall Thickness Weight
218 2.000″ 0.500″ 0.750″ 10.01 lbs.
219 2.000″ 0.750″ 0.625″ 9.178 lbs.
220 2.000″ 0.874″ 0.563″ 8.640 lbs.
221 2.000″ 1.000″ 0.500″ 8.010 lbs.
222 2.000″ 1.124″ 0.438″ 7.307 lbs.
223 2.000″ 1.250″ 0.375″ 6.508 lbs.
224 2.000″ 1.374″ 0.313″ 5.639 lbs.
225 2.000″ 1.438″ 0.281″ 5.159 lbs.
226 2.000″ 1.500″ 0.250″ 4.673 lbs.
227 2.000″ 1.562″ 0.219″ 4.166 lbs.
228 2.000″ 1.624″ 0.188″ 3.638 lbs.
229 2.000″ 1.688″ 0.156″ 3.072 lbs.
230 2.000″ 1.732″ 0.134″ 2.670 lbs.
231 2.000″ 1.760″ 0.120″ 2.409 lbs.
232 2.000″ 1.782″ 0.109″ 2.201 lbs.
233 2.000″ 1.810″ 0.095″ 1.933 lbs.
234 2.000″ 1.834″ 0.083″ 1.699 lbs.
235 2.000″ 1.870″ 0.065″ 1.343 lbs.
236 2.125″ of outside diameter Inside Diameter Wall Thickness Weight
237 2.125″ 1.125″ 0.500″ 8.678 lbs.
238 2.125″ 1.375″ 0.375″ 7.009 lbs.
239 2.125″ 1.499″ 0.313″ 6.057 lbs.
240 2.125″ 1.563″ 0.281″ 5.534 lbs.
241 2.125″ 1.625″ 0.250″ 5.006 lbs.
242 2.125″ 1.687″ 0.219″ 4.458 lbs.
243 2.125″ 1.749″ 0.188″ 3.889 lbs.
244 2.125″ 1.813″ 0.156″ 3.281 lbs.
245 2.125″ 1.885″ 0.120″ 2.570 lbs.
246 2.125″ 1.935″ 0.095″ 2.060 lbs.
247 2.125″ 2.027″ 0.049″ 1.086 lbs.
248 2.250″ of outside diameter Inside Diameter Wall Thickness Weight
249 2.250″ 0.75″ 0.750″ 12.02 lbs.
250 2.250″ 1.000″ 0.625″ 10.85 lbs.
251 2.250″ 1.124″ 0.563″ 10.14 lbs.
252 2.250″ 1.250″ 0.500″ 9.345 lbs.
253 2.250″ 1.374″ 0.438″ 8.476 lbs.
254 2.250″ 1.500″ 0.375″ 7.509 lbs.
255 2.250″ 1.624″ 0.313″ 6.475 lbs.
256 2.250″ 1.688″ 0.281″ 5.909 lbs.
257 2.250″ 1.750″ 0.250″ 5.340 lbs.
258 2.250″ 1.812″ 0.219″ 4.750 lbs.
259 2.250″ 1.874″ 0.188″ 4.140 lbs.
260 2.250″ 2.010″ 0.120″ 2.730 lbs.
261 2.250″ 2.060″ 0.095″ 2.186 lbs.
262 2.250″ 2.084″ 0.083″ 1.921 lbs.
263 2.250″ 2.120″ 0.065″ 1.517 lbs.
264 2.375″ of outside diameter Inside Diameter Wall Thickness Weight
265 2.375″ 1.125″ 0.625″ 11.68 lbs.
266 2.375″ 1.375″ 0.500″ 10.01 lbs.
267 2.375″ 1.625″ 0.375″ 8.010 lbs.
268 2.375″ 1.749″ 0.313″ 6.893 lbs.
269 2.375″ 1.875″ 0.250″ 5.674 lbs.
270 2.375″ 1.937″ 0.219″ 5.043 lbs.
271 2.375″ 1.999″ 0.188″ 4.391 lbs.
272 2.375″ 2.063″ 0.156″ 3.697 lbs.
273 2.375″ 2.135″ 0.120″ 2.890 lbs.
274 2.500″ of outside diameter Inside Diameter Wall Thickness Weight
275 2.500″ 1.000″ 0.750″ 14.02 lbs.
276 2.500″ 1.250″ 0.625″ 12.52 lbs.
277 2.500″ 1.374″ 0.563″ 11.65 lbs.
278 2.500″ 1.500″ 0.500″ 10.68 lbs.
279 2.500″ 1.624″ 0.438″ 9.646 lbs.
280 2.500″ 1.750″ 0.375″ 8.511 lbs.
281 2.500″ 1.874″ 0.313″ 7.311 lbs.
282 2.500″ 1.938″ 0.281″ 6.659 lbs.
283 2.500″ 2.000″ 0.250″ 6.008 lbs.
284 2.500″ 2.062″ 0.219″ 5.335 lbs.
285 2.500″ 2.124″ 0.188″ 4.642 lbs.
286 2.500″ 2.188″ 0.156″ 3.905 lbs.
287 2.500″ 2.260″ 0.120″ 3.050 lbs.
288 2.500″ 2.282″ 0.109″ 2.783 lbs.
289 2.500″ 2.310″ 0.095″ 2.440 lbs.
290 2.500″ 2.334″ 0.083″ 2.143 lbs.
291 2.500″ 2.370″ 0.065″ 1.690 lbs.
292 2.625″ of outside diameter Inside Diameter Wall Thickness Weight
293 2.625″ 1.375″ 0.625″ 13.35 lbs.
294 2.625″ 1.625″ 0.500″ 11.35 lbs.
295 2.625″ 1.749″ 0.438″ 10.23 lbs.
296 2.625″ 1.875″ 0.375″ 9.011 lbs.
297 2.625″ 1.999″ 0.313″ 7.729 lbs.
298 2.625″ 2.125″ 0.250″ 6.341 lbs.
299 2.625″ 2.249″ 0.188″ 4.893 lbs.
300 2.625″ 2.385″ 0.120″ 3.210 lbs.
301 2.750″ of outside diameter Inside Diameter Wall Thickness Weight
302 2.750″ 1.250″ 0.750″ 16.020 lbs.
303 2.750″ 1.500″ 0.625″ 14.184 lbs.
304 2.750″ 1.624″ 0.563″ 13.150 lbs.
305 2.750″ 1.750″ 0.500″ 12.015 lbs.
306 2.750″ 1.874″ 0.438″ 10.820 lbs.
307 2.750″ 2.000″ 0.375″ 9.512 lbs.
308 2.750″ 2.124″ 0.313″ 8.147 lbs.
309 2.750″ 2.188″ 0.281″ 7.410 lbs.
310 2.750″ 2.250″ 0.250″ 6.675 lbs.
311 2.750″ 2.312″ 0.219″ 5.920 lbs.
312 2.750″ 2.374″ 0.188″ 5.144 lbs.
313 2.750″ 2.438″ 0.156″ 4.322 lbs.
314 2.750″ 2.510″ 0.120″ 3.371 lbs.
315 2.750″ 2.560″ 0.095″ 2.694 lbs.
316 2.750″ 2.584″ 0.083″ 2.364 lbs.
317 2.750″ 2.620″ 0.065″ 1.864 lbs.
318 2.875″ of outside diameter Inside Diameter Wall Thickness Weight
319 2.875″ 1.625″ 0.625″ 15.020 lbs.
320 2.875″ 1.749″ 0.563″ 13.900 lbs.
321 2.875″ 1.875″ 0.500″ 12.680 lbs.
322 2.875″ 1.999″ 0.438″ 11.400 lbs.
323 2.875″ 2.125″ 0.375″ 10.010 lbs.
324 2.875″ 2.249″ 0.313″ 8.564 lbs.
325 2.875″ 2.375″ 0.250″ 7.009 lbs.
326 2.875″ 2.437″ 0.219″ 6.212 lbs.
327 2.875″ 2.499″ 0.188″ 5.395 lbs.
328 2.875″ 2.635″ 0.120″ 3.531 lbs.
329 3.000″ of outside diameter Inside Diameter Wall Thickness Weight
330 3.000″ 1.000″ 1.000″ 21.360 lbs.
331 3.000″ 1.250″ 0.875″ 19.860 lbs.
332 3.000″ 1.500″ 0.750″ 18.020 lbs.
333 3.000″ 1.750″ 0.625″ 15.850 lbs.
334 3.000″ 1.874″ 0.563″ 14.650 lbs.
335 3.000″ 2.000″ 0.500″ 13.350 lbs.
336 3.000″ 2.124″ 0.438″ 11.980 lbs.
337 3.000″ 2.250″ 0.375″ 10.510 lbs.
338 3.000″ 2.374″ 0.313″ 8.982 lbs.
339 3.000″ 2.438″ 0.281″ 8.160 lbs.
340 3.000″ 2.500″ 0.250″ 7.343 lbs.
341 3.000″ 2.562″ 0.219″ 6.505 lbs.
342 3.000″ 2.624″ 0.188″ 5.646 lbs.
343 3.000″ 2.688″ 0.156″ 4.738 lbs.
344 3.000″ 2.760″ 0.120″ 3.691 lbs.
345 3.000″ 2.810″ 0.095″ 2.947 lbs.
346 3.000″ 2.834″ 0.083″ 2.586 lbs.
347 3.000″ 2.870″ 0.065″ 2.037 lbs.
348 3.125″ of outside diameter Inside Diameter Wall Thickness Weight
349 3.125″ 1.875″ 0.625″ 16.690 lbs.
350 3.125″ 1.999″ 0.563″ 15.405 lbs.
351 3.125″ 2.125″ 0.500″ 14.020 lbs.
352 3.125″ 2.249″ 0.438″ 12.570 lbs.
353 3.125″ 2.375″ 0.375″ 11.014 lbs.
354 3.125″ 2.499″ 0.313″ 9.400 lbs.
355 3.125″ 2.625″ 0.250″ 7.676 lbs.
356 3.125″ 2.749″ 0.188″ 5.897 lbs.
357 3.125″ 2.885″ 0.120″ 3.851 lbs.
358 3.250″ of outside diameter Inside Diameter Wall Thickness Weight
359 3.250″ 1.250″ 1.000″ 24.030 lbs.
360 3.250″ 1.500″ 0.875″ 22.194 lbs.
361 3.250″ 1.750″ 0.750″ 20.025 lbs.
362 3.250″ 2.000″ 0.625″ 17.522 lbs.
363 3.250″ 2.125″ 0.563″ 16.157 lbs.
364 3.250″ 2.250″ 0.500″ 14.685 lbs.
365 3.250″ 2.374″ 0.438″ 13.154 lbs.
366 3.250″ 2.500″ 0.375″ 11.514 lbs.
367 3.250″ 2.625″ 0.313″ 9.818 lbs.
368 3.250″ 2.688″ 0.281″ 8.910 lbs.
369 3.250″ 2.750″ 0.250″ 8.010 lbs.
370 3.250″ 2.875″ 0.188″ 6.148 lbs.
371 3.250″ 2.938″ 0.156″ 5.155 lbs.
372 3.250″ 3.010″ 0.120″ 4.011 lbs.
373 3.250″ 3.060″ 0.095″ 3.201 lbs.
374 3.250″ 3.085″ 0.083″ 2.807 lbs.
375 3.250″ 3.120″ 0.065″ 2.211 lbs.
376 3.500″ of outside diameter Inside Diameter Wall Thickness Weight
377 3.500″ 1.500″ 1.000″ 26.700 lbs.
378 3.500″ 1.750″ 0.875″ 24.531 lbs.
379 3.500″ 2.000″ 0.750″ 22.028 lbs.
380 3.500″ 2.250″ 0.625″ 19.191 lbs.
381 3.500″ 2.375″ 0.563″ 17.660 lbs.
382 3.500″ 2.500″ 0.500″ 16.020 lbs.
383 3.500″ 2.624″ 0.438″ 14.324 lbs.
384 3.500″ 2.750″ 0.375″ 12.516 lbs.
385 3.500″ 2.875″ 0.313″ 10.654 lbs.
386 3.500″ 2.938″ 0.281″ 19.66 lbs.
387 3.500″ 3.000″ 0.250″ 8.678 lbs.
388 3.500″ 3.062″ 0.219″ 7.674 lbs.
389 3.500″ 3.125″ 0.188″ 6.650 lbs.
390 3.500″ 3.188″ 0.156″ 5.571 lbs.
391 3.500″ 3.260″ 0.120″ 4.332 lbs.
392 3.500″ 3.310″ 0.095″ 3.455 lbs.
393 3.500″ 3.335″ 0.083″ 3.029 lbs.
394 3.500″ 3.370″ 0.065″ 2.385 lbs.
395 3.625″ of outside diameter Inside Diameter Wall Thickness Weight
396 3.625″ 2.125″ 0.750″ 23.029 lbs.
397 3.625″ 2.375″ 0.625″ 20.025 lbs.
398 3.625″ 2.625″ 0.500″ 16.688 lbs.
399 3.625″ 2.749″ 0.438″ 14.908 lbs.
400 3.625″ 2.875″ 0.375″ 13.016 lbs.
401 3.625″ 3.000″ 0.313″ 11.071 lbs.
402 3.625″ 3.125″ 0.250″ 9.011 lbs.
403 3.625″ 3.250″ 0.188″ 6.901 lbs.
404 3.625″ 3.385″ 0.120″ 4.492 lbs.
405 3.750″ of outside diameter Inside Diameter Wall Thickness Weight
406 3.750″ 1.750″ 1.000″ 29.370 lbs.
407 3.750″ 2.000″ 0.875″ 26.867 lbs.
408 3.750″ 2.250″ 0.75″ 24.030 lbs.
409 3.750″ 2.500″ 0.625″ 20.859 lbs.
410 3.750″ 2.625″ 0.563″ 19.163 lbs.
411 3.750″ 2.750″ 0.500″ 17.355 lbs.
412 3.750″ 2.874″ 0.438″ 15.493 lbs.
413 3.750″ 3.000″ 0.375″ 13.517 lbs.
414 3.750″ 3.125″ 0.313″ 11.489 lbs.
415 3.750″ 3.250″ 0.250″ 9.345 lbs.
416 3.750″ 3.375″ 0.188″ 7.152 lbs.
417 3.750″ 3.510″ 0.120″ 4.652 lbs.
418 3.875″ of outside diameter Inside Diameter Wall Thickness Weight
419 3.875″ 2.375″ 0.750″ 25.031 lbs.
420 3.875″ 2.625″ 0.625″ 21.694 lbs.
421 3.875″ 2.875″ 0.500″ 18.023 lbs.
422 3.875″ 3.125″ 0.375″ 14.018 lbs.
423 3.875″ 3.375″ 0.250″ 9.679 lbs.
424 3.875″ 3.500″ 0.188″ 7.403 lbs.
425 3.875″ 3.635″ 0.120″ 4.812 lbs.
426 4.000″ of outside diameter Inside Diameter Wall Thickness Weight
427 4.000″ 1.500″ 1.250″ 36.713 lbs.
428 4.000″ 2.000″ 1.000″ 34.543 lbs.
429 4.000″ 2.250″ 0.875″ 32.040 lbs.
430 4.000″ 2.500″ 0.750″ 29.203 lbs.
431 4.000″ 2.750″ 0.625″ 26.033 lbs.
432 4.000″ 2.875″ 0.563″ 22.528 lbs.
433 4.000″ 3.000″ 0.500″ 20.666 lbs.
434 4.000″ 3.124″ 0.438″ 18.690 lbs.
435 4.000″ 3.250″ 0.375″ 16.662 lbs.
436 4.000″ 3.375″ 0.313″ 14.518 lbs.
437 4.000″ 3.500″ 0.250″ 12.325 lbs.
438 4.000″ 3.562″ 0.219″ 10.013 lbs.
439 4.000″ 3.625″ 0.188″ 8.843 lbs.
440 4.000″ 3.750″ 0.125″ 7.654 lbs.
441 4.000″ 3.760″ 0.120″ 4.973 lbs.
442 4.000″ 3.810″ 0.095″ 3.962 lbs.
443 4.000″ 3.835″ 0.083″ 3.472 lbs.
444 4.000″ 3.870″ 0.065″ 2.732 lbs.
445 4.125″ of outside diameter Inside Diameter Wall Thickness Weight
446 4.125″ 2.875″ 0.625″ 23.363 lbs.
447 4.125″ 3.125″ 0.500″ 19.358 lbs.
448 4.125″ 3.375″ 0.375″ 15.019 lbs.
449 4.125″ 3.500″ 0.313″ 12.743 lbs.
450 4.125″ 3.625″ 0.250″ 10.346 lbs.
451 4.250″ of outside diameter Inside Diameter Wall Thickness Weight
452 4.250″ 1.750″ 1.250″ 40.050 lbs.
453 4.250″ 2.250″ 1.000″ 37.547 lbs.
454 4.250″ 2.500″ 0.875″ 34.710 lbs.
455 4.250″ 2.750″ 0.750″ 31.539 lbs.
456 4.250″ 3.000″ 0.625″ 28.035 lbs.
457 4.250″ 3.250″ 0.500″ 24.197 lbs.
458 4.250″ 3.394″ 0.428″ 20.025 lbs.
459 4.250″ 3.500″ 0.375″ 17.832 lbs.
460 4.250″ 3.625″ 0.313″ 15.519 lbs.
461 4.250″ 3.750″ 0.250″ 13.161 lbs.
462 4.250″ 3.875″ 0.188″ 10.680 lbs.
463 4.250″ 4.000″ 0.125″ 8.156 lbs.
464 4.250″ 4.010″ 0.120″ 5.293 lbs.
465 4.250″ 4.060″ 0.095″ 4.216 lbs.
466 4.250″ 4.120″ 0.065″ 2.905 lbs.
467 4.500″ of outside diameter Inside Diameter Wall Thickness Weight
468 4.500″ 1.500″ 1.500″ 48.060 lbs.
469 4.500″ 2.000″ 1.250″ 43.388 lbs.
470 4.500″ 2.500″ 1.000″ 40.551 lbs.
471 4.500″ 2.750″ 0.875″ 37.380 lbs.
472 4.500″ 3.000″ 0.750″ 33.876 lbs.
473 4.500″ 3.250″ 0.625″ 30.038 lbs.
474 4.500″ 3.500″ 0.500″ 25.866 lbs.
475 4.500″ 3.624″ 0.438″ 21.360 lbs.
476 4.500″ 3.750″ 0.375″ 19.001 lbs.
477 4.500″ 3.875″ 0.313″ 16.521 lbs.
478 4.500″ 4.000″ 0.250″ 13.996 lbs.
479 4.500″ 4.062″ 0.219″ 11.348 lbs.
480 4.500″ 4.125″ 0.188″ 10.013 lbs.
481 4.500″ 4.232″ 0.134″ 8.658 lbs.
482 4.500″ 4.250″ 0.125″ 6.248 lbs.
483 4.500″ 4.260″ 0.120″ 5.613 lbs.
484 4.500″ 4.310″ 0.095″ 4.469 lbs.
485 4.500″ 4.335″ 0.083″ 3.915 lbs.
486 4.500″ 4.370″ 0.065″ 3.079 lbs.
487 4.625″ of outside diameter Inside Diameter Wall Thickness Weight
488 4.625″ 3.625″ 0.500″ 22.028 lbs.
489 4.625″ 3.875″ 0.375″ 17.021 lbs.
490 4.625″ 4.000″ 0.313″ 14.414 lbs.
491 4.625″ 4.125″ 0.250″ 11.681 lbs.
492 4.750″ of outside diameter Inside Diameter Wall Thickness Weight
493 4.750″ 1.750″ 1.500″ 52.065 lbs.
494 4.750″ 2.250″ 1.250″ 46.725 lbs.
495 4.750″ 2.750″ 1.000″ 40.050 lbs.
496 4.750″ 3.000″ 0.875″ 36.212 lbs.
497 4.750″ 3.250″ 0.750″ 32.040 lbs.
498 4.750″ 3.500″ 0.625″ 27.534 lbs.
499 4.750″ 3.750″ 0.500″ 22.695 lbs.
500 4.750″ 4.000″ 0.375″ 17.522 lbs.
501 4.750″ 4.125″ 0.313″ 14.832 lbs.
502 4.750″ 4.250″ 0.250″ 12.015 lbs.
503 4.750″ 4.375″ 0.188″ 9.160 lbs.
504 4.750″ 4.510″ 0.120″ 5.934 lbs.
Outside Diameter Inside Diameter Wall Thickness Weight: Lbs./Lin. Ft.
Download the List of the Tubes

Back-to-Top

Return to all Products

 Check All Technical Specifications & Available Dimensions

The form of Round Hydraulic Tubing, View 2

ROUND HYDRAULIC TUBING

SEAMLESS (SMLS), WELDED (ERW)

Standards (ASTM): A179, J524B, SAE J525B

Available dimensions: 20′ or cut to size

APPLICATION and USAGE of the ROUND HYDRAULIC TUBING:

The Hydraulic Steel tube is popular in hydraulic applications such as oil and water-conveying and pneumatic applications. The cold rolled is more expensive than hot-rolled, but it pays off to choose initially saving you time, money and problems in the long term.

  • Petrochemical and Refineries:  High-pressure environments demand robust and durable tubing for fluid transfer and other applications.

  • Power Industries:  Seamless tubes are essential for heat exchangers, ensuring efficient energy transfer.

  • Automotive and Aerospace: These industries use hydraulic tubes for systems that require high reliability and precision under dynamic loads.

Round hydraulic tubing is manufactured using a seamless process, which involves the following key steps:

  1. Raw Material Selection: High-quality steel is selected as the raw material for hydraulic tubing.
  2. Tube Formation: The steel is heated and formed into a tube shape using a piercing process. This creates a hollow tube without any welds, ensuring higher strength and integrity.
  3. Cold Drawing: The tube is then cold-drawn to achieve the desired dimensions and mechanical properties. This process enhances the tube’s precision, surface finish, and strength.
  4. Heat Treatment: The tubes undergo heat treatment to relieve internal stresses and improve mechanical properties.
  5. Inspection and Testing: Rigorous inspection and testing are conducted to ensure the tubes meet industry standards and specifications.

Please call one of our representatives to inquire the dimensions and the technical specs of the Round Hydraulic Tubing.

514.634.2252
514.634.2252
Download the List of the Tubes

Back-to-Top

Return to all Products

 Check All Technical Specifications & Available Dimensions

The form of Black & Galvanized Pipes - Schedule 40, View 2

BLACK & GALVANIZED PIPES – SCHEDULE 40

SEAMLESS (SMLS) WELDED (ERW)

Standards (ASTM): A106, A53

Available dimensions: 21′ or cut to size

– The A106 pipe is always produced by the seamless method and can be bent, coiled and flanged. The pipes less than 2″ are usually produced as a cold-drawn product. The pipes of 2″ and up are usually hot finished.
– The A53 pipe is a carbon steel alloy suitable for welding, forming operations involving coiling, bending, and flanging.

APPLICATION and USAGE of the BLACK & GALVANIZED PIPES – SCHEDULE 40:

– A106 pipes are primarily used in general plumbing such as for heat exchangers, condenser, and boilers etc.
– A53 pipes are intended for mechanical and low-pressure plumbing applications and are also acceptable for ordinary uses in steam, water, gas, and air pipelines.

Black & Galvanized Pipes - Schedule 40

wdt_ID Dimensions in Inches Dimensions in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
1 1/8″ 3.180 0.405 0.269 0.068 0.24
2 1/4″ 6.350 0.540 0.364 0.088 0.42
3 3/8″ 9.530 0.675 0.493 0.091 0.56
4 1/2″ 12.700 0.840 0.622 0.109 0.85
5 3/4″ 19.000 1.050 0.824 0.113 1.13
6 1″ 25.400 1.315 1.049 0.133 1.67
7 1 1/4″ 31.800 1.660 1.380 0.140 2.27
8 1 1/2″ 38.100 1.900 1.610 0.145 2.71
9 2″ 50.800 2.375 2.067 0.154 3.65
10 2 1/2″ 63.500 2.875 2.469 0.203 5.79
11 3″ 76.200 3.500 3.068 0.216 7.57
12 3 1/2″ 88.900 4.000 3.548 0.226 9.10
13 4″ 101.600 4.500 4.026 0.237 10.79
14 4 1/2″ 114.300 5.000 4.506 .0247 12.53
15 5″ 127.000 5.563 5.047 0.258 14.61
16 6″ 152.400 6.625 6.065 0.280 18.97
17 7″ 177.800 7.625 7.023 0.301 23.54
18 8″ 203.200 8.625 8.071 0.277 24.69
19 8″ 203.200 8.625 7.981 0.322 28.55
20 10″ 254.000 10.750 10.192 0.279 31.20
21 10″ 254.000 10.750 10.136 0.307 34.24
22 10″ 254.000 10.750 10.020 0.365 40.48
23 12″ 304.800 12.750 12.090 0.330 43.77
24 12″ 304.800 12.750 12.000 0.375 49.56
25 14″ 355.600 14.000 13.250 0.375 54.57
26 16″ 406.400 16.000 15.250 0.375 62.58
Dimensions in Inches Dimensions in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
Download the List of the Pipes

Back-to-Top

Return to all Products

 Check All Technical Specifications & Available Dimensions

The form of Black & Galvanized Pipes - Schedule 80, View 2

BLACK & GALVANIZED PIPES – SCHEDULE 80

SEAMLESS (SMLS) WELDED (ERW)

Standards (ASTM): A106, A53

Available dimensions: 21′ or cut to size

– The A106 pipe is always produced by the seamless method and can be bent, coiled and flanged. The pipes less than 2″ are usually produced as a cold-drawn product. The pipes of 2″ and up are usually hot finished.
– The A53 pipe is a carbon steel alloy suitable for welding, forming operations involving coiling, bending, and flanging.

APPLICATION and USAGE of the BLACK & GALVANIZED PIPES – SCHEDULE 80:

– A106 pipes are primarily used in general plumbing such as for heat exchangers, condenser, and boilers etc.
– A53 pipes are intended for mechanical and low-pressure plumbing applications and are also acceptable for ordinary uses in steam, water, gas, and air pipelines.

Black & Galvanized Pipes - Schedule 80

wdt_ID Size in Inches Size in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
1 1/8″ 3.180 0.405 0.215 0.095 0.310
2 1/4″ 6.350 0.540 0.302 0.119 0.530
3 3/8″ 9.530 0.675 0.423 0.126 0.730
4 1/2″ 12.700 0.840 0.546 0.147 1.080
5 3/4″ 19.000 1.050 0.724 0.154 1.470
6 1″ 25.400 1.315 0.957 0.179 2.170
7 1 1/4″ 31.800 1.660 1.278 0.191 2.990
8 1 1/2″ 38.100 1.900 1.500 0.200 3.630
9 2″ 50.800 2.375 1.939 0.218 5.020
10 2 1/2″ 63.500 2.875 2.323 0.276 7.660
11 3″ 76.200 3.500 2.900 0.300 10.250
12 3 1/2″ 88.900 4.000 3.364 0.318 12.500
13 4″ 101.600 4.500 3.826 0.337 14.980
14 4 1/2″ 114.300 5.000 4.290 0.335 17.610
15 5″ 127.000 5.563 4.813 0.375 20.770
16 6″ 152.400 6.625 5.761 0.432 28.570
17 7″ 177.800 7.625 6.625 0.500 38.040
18 8″ 203.200 8.625 7.625 0.500 43.380
19 10″ (EH) 254.000 10.750 9.750 0.500 54.730
20 12″ (EH) 304.800 12.750 11.750 0.500 65.410
21 14″ (EH) 355.600 14.000 13.000 0.500 72.090
22 16″ (EH) 406.400 16.000 15.000 0.500 82.770
Size in Inches Size in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
Download the List of the Pipes

Back-to-Top

Return to all Products

 Check All Technical Specifications & Available Dimensions

The form of Black & Galvanized Pipes - XXS, View 2

BLACK & GALVANIZED PIPES – XXS (DOUBLE EXTRA HEAVY)

SEAMLESS (SMLS) WELDED (ERW)

Standards (ASTM): A106, A53

Available dimensions: 21′ or cut to size

– The A106 pipe is always produced by the seamless method and can be bent, coiled and flanged. The pipes less than 2″ are usually produced as a cold-drawn product. The pipes of 2″ and up are usually hot finished.
– The A53 pipe is a carbon steel alloy suitable for welding, forming operations involving coiling, bending, and flanging.

APPLICATION and USAGE of the BLACK & GALVANIZED PIPES – XXS (DOUBLE EXTRA HEAVY):

– A106 pipes are primarily used in general plumbing such as for heat exchangers, condenser, and boilers etc.
– A53 pipes are intended for mechanical and low-pressure plumbing applications and are also acceptable for ordinary uses in steam, water, gas, and air pipelines.

Black & Galvanized Pipes - XXS (Double Extra Heavy)

wdt_ID Size in Inches Size in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
1 1/2″ 12.700 0.840 0.252 0.294 1.710
2 3/4″ 19.000 1.050 0.434 0.308 2.440
3 1″ 25.400 1.315 0.599 0.358 3.650
4 1 1/4″ 31.800 1.660 0.896 0.382 5.210
5 1 1/2″ 38.100 1.900 1.100 0.400 6.400
6 2″ 50.800 2.375 1.503 0.436 9.020
7 2 1/2″ 63.500 2.875 1.771 0.552 13.690
8 3″ 76.200 3.500 2.300 0.600 18.580
9 3 1/2″ 88.900 4.000 2.728 0.636 22.850
10 4″ 101.600 4.500 3.152 0.674 27.450
11 4 1/2″ 114.300 5.000 3.580 0.710 32.530
12 5″ 127.000 5.563 4.063 0.750 38.550
13 6″ 152.400 6.625 4.897 0.864 53.160
14 7″ 177.800 7.625 5.875 0.875 63.070
15 8″ 203.200 8.625 6.875 0.875 72.420
Size in Inches Size in MM Outside Diameter Inside Diameter Thickness Weight: Lbs./Lin. Ft.
Download the List of the Pipes

Back-to-Top

Return to all Products

Types of Steel Tubes and Pipes offered by Acier Lachine

Our Steel Tubes for Sale View 1 Acier Lachine Montreal QC 800x600 1
Our Steel Tubes for Sale View 2 Acier Lachine Montreal QC 800x600 1
Our Steel Tubes for Sale View 3 Acier Lachine Montreal QC 800x600 1
Our Steel Tubes for Sale View 4 Acier Lachine Montreal QC 800x600 1
Our Steel Tubes for Sale View 5 Acier Lachine Montreal QC 800x600 1
Our Steel Tubes for Sale View 6 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 1 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 2 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 3 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 4 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 6 Acier Lachine Montreal QC 800x600 1
Our Steel Pipes for Sale View 5 Acier Lachine Montreal QC 800x600 1

Quick Links

Please use the links below to navigate quickly to your most relevant pages.
