Acier Lachine is offering a wide variety of steel angles and structural angles. In addition, we are able to offer the structural angles covered with a primer layer or a layer of zinc (galvanization).

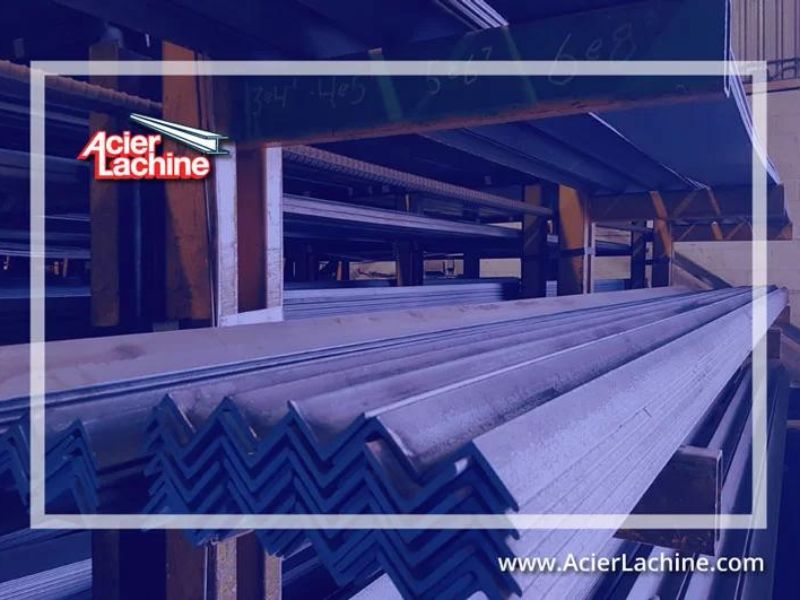

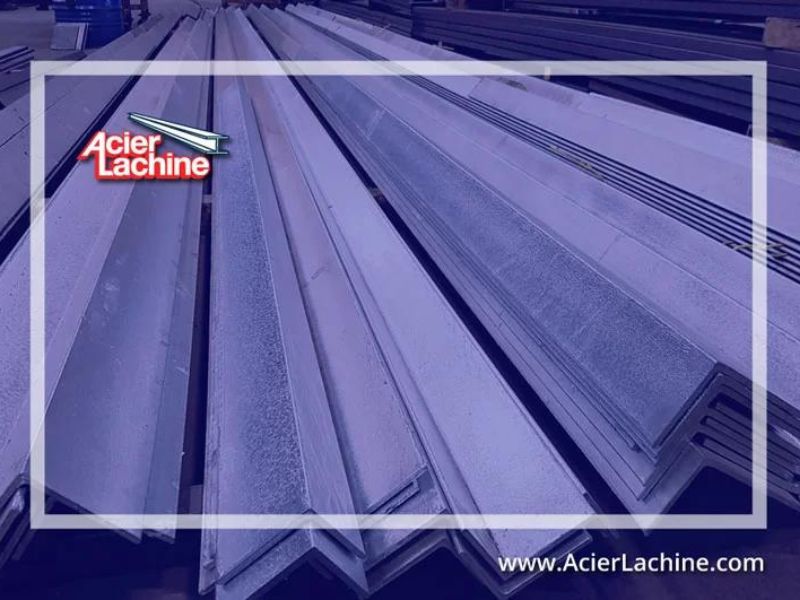

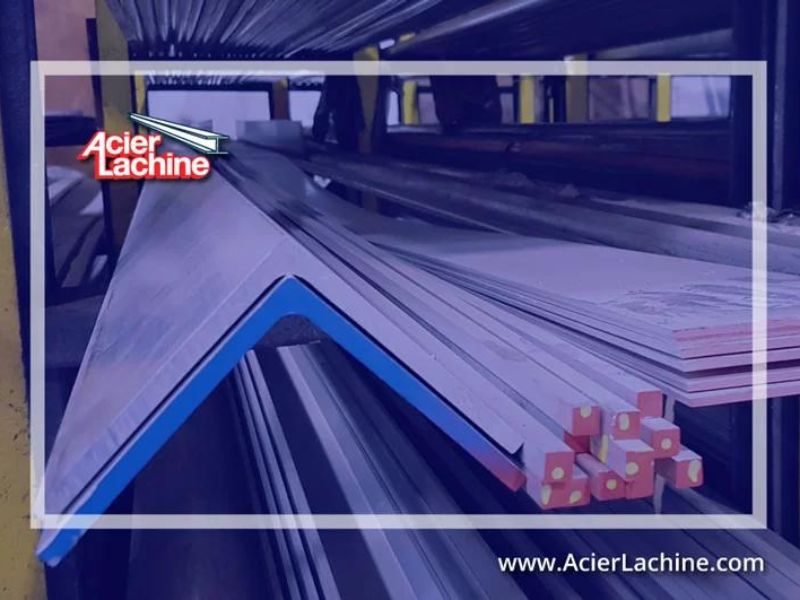

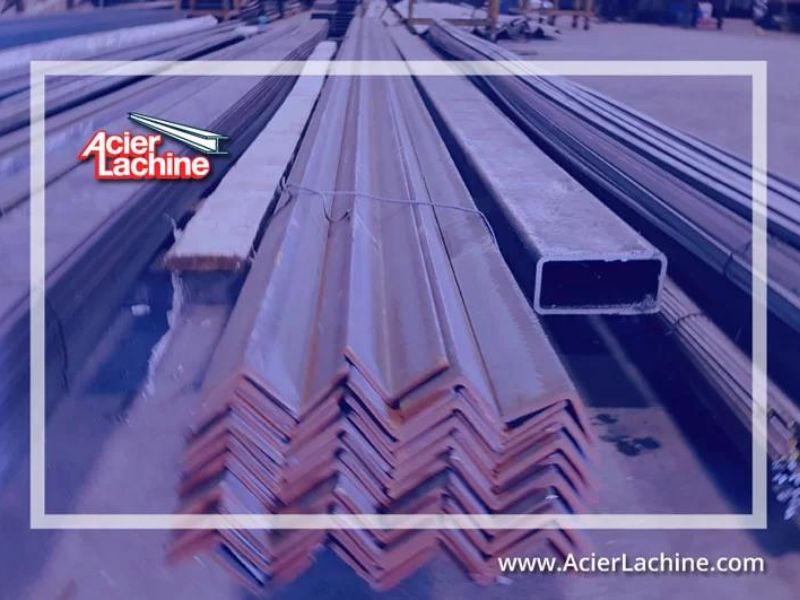

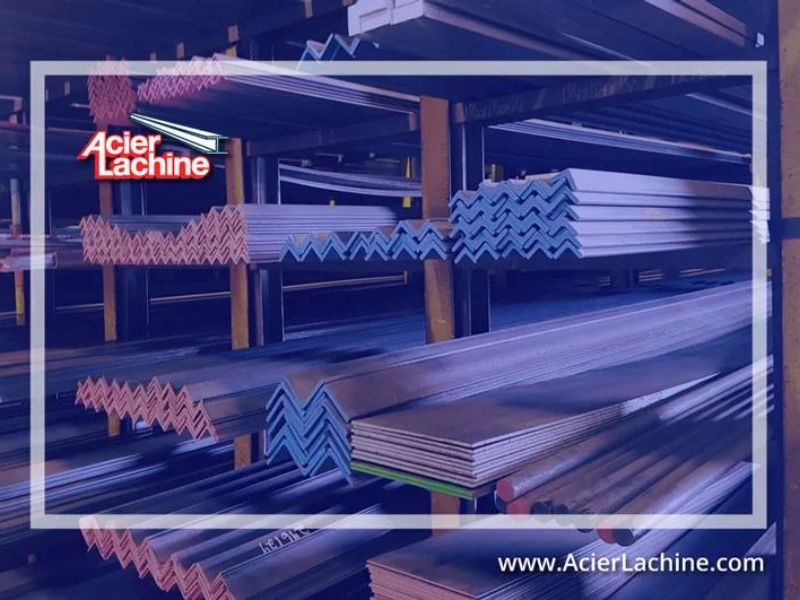

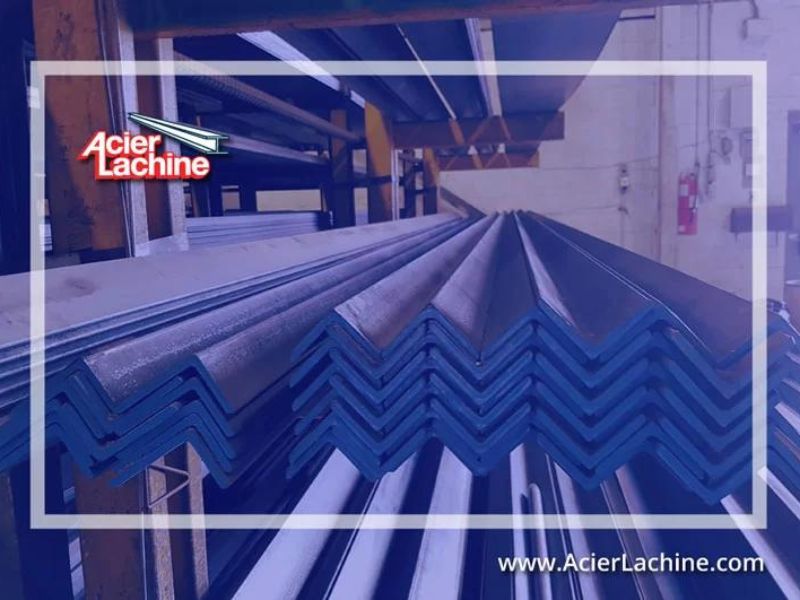

Explore our range of STEEL ANGLES

A36/44W is one of the most widely used carbon steels for angles by the construction industry. It is a low-cost material compared to specialty steels and exhibits the strength required for structural applications. In addition, it is weldable, formable, and machinable. Galvanizing the steel increases its resistance to corrosion.

APPLICATION of Steel Angles:

The steel angles are used in a range of industrial applications, including, machinery and Equipment Frames (Braces and Corners), transportation Frames and Corners, support frames that require welding, riveting, or bolting on bridges and buildings, and general structural use in construction.

  • Construction Industry:

    • Structural Support:  Steel angles are often used in building frames and structural support systems. Their ability to bear heavy loads makes them essential in the construction of bridges, buildings, and towers.

    • Reinforcement:  They are used to reinforce concrete structures, providing additional strength to beams and columns.

    • Bracing:  In metal building frameworks, steel angles serve as bracing elements, enhancing the stability of the structure.

  • Manufacturing and Industrial Use

    • Machinery and Equipment:  Steel angles are used in the manufacturing of machinery and industrial equipment due to their strength and durability.

    • Storage Racks and Shelving:  In warehouses and storage facilities, steel angles are used to construct heavy-duty shelving and storage racks.

  • Transportation Industry:

    • Vehicle Frames:  Steel angles are used in the construction of vehicle frames, including trucks and trailers, providing the necessary structural integrity.

    • Railway Infrastructure:  They are also employed in the construction and maintenance of railway tracks and related infrastructure.

  • Residential Applications:

    • Home Improvement:  Steel angles are used in various home improvement projects, such as creating custom furniture, frames for doors and windows, and support brackets for shelves.

    • Decorative Elements:  They can also be used as decorative elements in homes, adding both function and aesthetic appeal.

  • Miscellaneous Uses:

    • Fencing and Gates: Steel angles are used to construct fences and gates, offering both security and durability.

    • Marine Industry: Due to their corrosion resistance, especially when made from stainless steel, they are used in marine applications, such as boat construction and dock supports.

  • Strength and Durability:  Steel angles are known for their high strength-to-weight ratio, making them capable of supporting heavy loads without bending or breaking.
  • Versatility:  They can be used in a wide range of applications, from construction to home improvement projects.
  • Corrosion Resistance:  When made from stainless steel, these angles resist rust and corrosion, making them suitable for outdoor and marine applications.
  • Ease of Fabrication:  Steel angles can be easily cut, drilled, and welded to suit specific project requirements.

Browse All the Technical Specifications & Available Dimensions

 ANGLES (STEEL ANGLE)

HOT ROLLED

Standards(ASTM or AISI): A36/44W

Available dimensions: 20′ & 40′ or cut to size

Steel Angles

Size in Inches Size in MM Weight: Lbs./Lin. Ft.
1 1/2″ x 1/2″ 12.7mm x 12.7mm
2 1/2″ x 1/2″ x 1/8″ 12.7mm x 12.7mm x 3.18mm 0.380 lbs.
3 3/4″ x 3/4″ 19mm x 19mm
4 3/4″ x 3/4″ x 1/8″ 19mm x 19mm x 3.18mm 0.590 lbs.
5 3/4″ x 3/4″ x 3/16″ 19mm x 19mm x 4.76mm 0.840 lbs.
6 1″ x 1″ 25.4mm x 25.4mm
7 1″ x 1″ x 1/8″ 25.4mm x 25.4mm x 3.18mm 0.800 lbs.
8 1″ x 1″ x 3/16″ 25.4mm x 25.4mm x 4.76mm 1.160 lbs.
9 1″ x 1″ x 1/4″ 25.4mm x 25.4mm x 6.35mm 1.490 lbs.
10 1 1/4″ x 1 1/4″ 31.8mm x 31.8mm
11 1 1/4″ x 1 1/4″ x 3/16″ 31.8mm x 31.8mm x 4.76mm 1.480 lbs.
12 1 1/4″ x 1 1/4″ x 1/4″ 31.8mm x 31.8mm x 6.35mm 1.920 lbs.
13 1 1/2″ x 1 1/2″ 38.1mm x 38.1mm
14 1 1/2″ x 1 1/2″ x 1/8″ 38.1mm x 38.1mm x 3.18mm 1.230 lbs.
15 1 1/2″ x 1 1/2″ x 3/16″ 38.1mm x 38.1mm x 4.76mm 1.800 lbs.
16 1 1/2″ x 1 1/2″ x 1/4″ 38.1mm x 38.1mm x 6.35mm 2.340 lbs.
17 1 1/2″ x 1 1/2″ x 5/16″ 38.1mm x 38.1mm x 7.94mm 2.860 lbs.
18 1 1/2″ x 1 1/2″ x 3/8″ 38.1mm x 38.1mm x 9.53mm 3.350 lbs.
19 1 3/4″ x 1 3/4″ 44.4mm x 44.4mm
20 1 3/4″ x 1 3/4″ x 1/8″ 44.4mm x 44.4mm x 3.18mm 1.440 lbs.
21 1 3/4″ x 1 3/4″ x 3/16″ 44.4mm x 44.4mm x 4.76mm 2.120 lbs.
22 1 3/4″ x 1 3/4″ x 1/4″ 44.4mm x 44.4mm x 6.35mm 2.770 lbs.
23 1 3/4″ x 1 3/4″ x 5/16″ 44.4mm x 44.4mm x 7.94mm 3.390 lbs.
24 2″ x 1 1/2″ 50.8mm x 38.1mm
25 2″ x 1 1/2″ x 1/8″ 50.8mm x 38.1mm x 3.18mm 1.440 lbs.
26 2″ x 1 1/2″ x 3/16″ 50.8mm x 38.1mm x 4.76mm 2.120 lbs.
27 2″ x 1 1/2″ x 1/4″ 50.8mm x 38.1mm x 6.35mm 2.770 lbs.
28 2″ x 1 1/2″ x 5/16″ 50.8mm x 38.1mm x 7.94mm 3.390 lbs.
29 2″ x 2″ 50.8mm x 50.8mm
30 2″ x 2″ x 1/8″ 50.8mm x 50.8mm x 3.18mm 1.650 lbs.
31 2″ x 2″ x 3/16″ 50.8mm x 50.8mm x 4.76mm 2.440 lbs.
32 2″ x 2″ x 1/4″ 50.8mm x 50.8mm x 6.35mm 3.190 lbs.
33 2″ x 2″ x 5/16″ 50.8mm x 50.8mm x 7.94mm 3.920 lbs.
34 2″ x 2″ x 3/8″ 50.8mm x 50.8mm x 9.53mm 4.700 lbs.
35 2 1/2″ x 1 1/2″ 63.5mm x 38.1mm
36 2 1/2″ x 1 1/2″ x 3/16″ 63.5mm x 38.1mm x 4.76mm 2.440 lbs.
37 2 1/2″ x 1 1/2″ x 1/4″ 63.5mm x 38.1mm x 6.35mm 3.190 lbs.
38 2 1/2″ x 1 1/2″ x 5/16″ 63.5mm x 38.1mm x 7.94mm 3.920 lbs.
39 2 1/2″ x 2″ 63.5mm x 50.8mm
40 2 1/2″ x 2″ x 3/16″ 63.5mm x 50.8mm x 4.76mm 2.750 lbs.
41 2 1/2″ x 2″ x 1/4″ 63.5mm x 50.8mm x 6.35mm 3.620 lbs.
42 2 1/2″ x 2″ x 5/16″ 63.5mm x 50.8mm x 7.94mm 4.500 lbs.
43 2 1/2″ x 2″ x 3/8″ 63.5mm x 50.8mm x 9.53mm 5.300 lbs.
44 2 1/2″ x 2 1/2″ 63.5mm x 63.5mm
45 2 1/2″ x 2 1/2″ x 1/8″ 63.5mm x 63.5mm x 3.18mm 2.080 lbs.
46 2 1/2″ x 2 1/2″ x 3/16″ 63.5mm x 63.5mm x 4.76mm 3.070 lbs.
47 2 1/2″ x 2 1/2″ x 1/4″ 63.5mm x 63.5mm x 6.35mm 4.100 lbs.
48 2 1/2″ x 2 1/2″ x 5/16″ 63.5mm x 63.5mm x 7.94mm 5.000 lbs.
49 2 1/2″ x 2 1/2″ x 3/8″ 63.5mm x 63.5mm x 9.53mm 5.900 lbs.
50 2 1/2″ x 2 1/2″ x 1/2″ 63.5mm x 63.5mm x 12.70mm 7.700 lbs.
51 3″ x 2″ 76.2mm x 50.8mm
52 3″ x 2″ x 3/16″ 76.2mm x 50.8mm x 4.76mm 3.070 lbs.
53 3″ x 2″ x 1/4″ 76.2mm x 50.8mm x 6.35mm 4.100 lbs.
54 3″ x 2″ x 5/16″ 76.2mm x 50.8mm x 7.94mm 5.000 lbs.
55 3″ x 2″ x 3/8″ 76.2mm x 50.8mm x 9.53mm 5.900 lbs.
56 3″ x 2″ x 1/2″ 76.2mm x 50.8mm x 12.70mm 7.700 lbs.
57 3″ x 2 1/2″ 76.2mm x 63.5mm
58 3″ x 2 1/2″ x 3/16″ 76.2mm x 63.5mm x 4.76mm 3.390 lbs.
59 3″ x 2 1/2″ x 1/4″ 76.2mm x 63.5mm x 6.35mm 4.500 lbs.
60 3″ x 2 1/2″ x 5/16″ 76.2mm x 63.5mm x 7.94mm 5.600 lbs.
61 3″ x 2 1/2″ x 3/8″ 76.2mm x 63.5mm x 9.53mm 6.600 lbs.
62 3″ x 2 1/2″ x 1/2″ 76.2mm x 63.5mm x 12.70mm 8.500 lbs.
63 3″ x 3″ 76.2mm x 76.2mm
64 3″ x 3″ x 3/16″ 76.2mm x 76.2mm x 4.76mm 3.710 lbs.
65 3″ x 3″ x 1/4″ 76.2mm x 76.2mm x 6.35mm 4.900 lbs.
66 3″ x 3″ x 5/16″ 76.2mm x 76.2mm x 7.94mm 6.100 lbs.
67 3″ x 3″ x 3/8″ 76.2mm x 76.2mm x 9.53mm 7.200 lbs.
68 3″ x 3″ x 1/2″ 76.2mm x 76.2mm x 12.70mm 9.400 lbs.
69 3 1/2″ x 2 1/2″ 88.9mm x 63.5mm
70 3 1/2″ x 2 1/2″ x 1/4″ 88.9mm x 63.5mm x 6.35mm 4.900 lbs.
71 3 1/2″ x 2 1/2″ x 5/16″ 88.9mm x 63.5mm x 7.94mm 6.100 lbs.
72 3 1/2″ x 2 1/2″ x 3/8″ 88.9mm x 63.5mm x 9.53mm 7.200 lbs.
73 3 1/2″ x 2 1/2″ x 1/2″ 88.9mm x 63.5mm x 12.70mm 9.400 lbs.
74 3 1/2″ x 3″ 88.9mm x 76.2mm
75 3 1/2″ x 3″ x 1/4″ 88.9mm x 76.2mm x 6.35mm 5.400 lbs.
76 3 1/2″ x 3″ x 5/16″ 88.9mm x 76.2mm x 7.94mm 6.600 lbs.
77 3 1/2″ x 3″ x 3/8″ 88.9mm x 76.2mm x 9.53mm 7.900 lbs.
78 3 1/2″ x 3″ x 1/2″ 88.9mm x 76.2mm x 12.70mm 10.200 lbs.
79 3 1/2″ x 3 1/2″ 88.9mm x 88.9mm
80 3 1/2″ x 3 1/2″ x 1/4″ 88.9mm x 88.9mm x 6.35mm 5.800 lbs.
81 3 1/2″ x 3 1/2″ x 5/16″ 88.9mm x 88.9mm x 7.94mm 7.200 lbs.
82 3 1/2″ x 3 1/2″ x 3/8″ 88.9mm x 88.9mm x 9.53mm 8.500 lbs.
83 3 1/2″ x 3 1/2″ x 1/2″ 88.9mm x 88.9mm x 12.70mm 11.100 lbs.
84 4″ x 3″ 101.6mm x 76.2mm
85 4″ x 3″ x 1/4″ 101.6mm x 76.2mm x 6.35mm 5.800 lbs.
86 4″ x 3″ x 5/16″ 101.6mm x 76.2mm x 7.94mm 7.200 lbs.
87 4″ x 3″ x 3/8″ 101.6mm x 76.2mm x 9.53mm 8.500 lbs.
88 4″ x 3″ x 1/2″ 101.6mm x 76.2mm x 12.70mm 11.100 lbs.
89 4″ x 3″ x 5/8″ 101.6mm x 76.2mm x 15.90mm 13.600 lbs.
90 4″ x 3 1/2″ 101.6mm x 88.9mm
91 4″ x 3 1/2″ x 1/4″ 101.6mm x 88.9mm x 6.35mm 6.200 lbs.
92 4″ x 3 1/2″ x 5/16″ 101.6mm x 88.9mm x 7.94mm 7.700 lbs.
93 4″ x 3 1/2″ x 3/8″ 101.6mm x 88.9mm x 9.53mm 9.100 lbs.
94 4″ x 3 1/2″ x 1/2″ 101.6mm x 88.9mm x 12.70mm 11.900 lbs.
95 4″ x 3 1/2″ x 5/8″ 101.6mm x 88.9mm x 15.90mm 14.700 lbs.
96 4″ x 4″ 101.6mm x 101.6mm
97 4″ x 4″ x 1/4″ 101.6mm x 101.6mm x 6.35mm 6.600 lbs.
98 4″ x 4″ x 5/16″ 101.6mm x 101.6mm x 7.94mm 8.200 lbs.
99 4″ x 4″ x 3/8″ 101.6mm x 101.6mm x 9.53mm 9.800 lbs.
100 4″ x 4″ x 1/2″ 101.6mm x 101.6mm x 12.70mm 12.800 lbs.
101 4″ x 4″ x 5/8″ 101.6mm x 101.6mm x 15.90mm 15.700 lbs.
102 4″ x 4″ x 3/4″ 101.6mm x 101.6mm x 18.50mm 18.500 lbs.
103 5″ x 3″ 127mm x 76.2mm
104 5″ x 3″ x 1/4″ 127mm x 76.2mm x 6.35mm 6.600 lbs.
105 5″ x 3″ x 5/16″ 127mm x 76.2mm x 7.94mm 8.200 lbs.
106 5″ x 3″ x 3/8″ 127mm x 76.2mm x 9.53mm 9.800 lbs.
107 5″ x 3″ x 1/2″ 127mm x 76.2mm x 12.70mm 12.800 lbs.
108 5″ x 3 1/2″ 127mm x 88.9mm
109 5″ x 3 1/2″ x 1/4″ 127mm x 88.9mm x 6.35mm 7.000 lbs.
110 5″ x 3 1/2″ x 5/16″ 127mm x 88.9mm x 7.94mm 8.700 lbs.
111 5″ x 3 1/2″ x 3/8″ 127mm x 88.9mm x 9.53mm 10.400 lbs.
112 5″ x 3 1/2″ x 1/2″ 127mm x 88.9mm x 12.70mm 13.600 lbs.
113 5″ x 3 1/2″ x 5/8″ 127mm x 88.9mm x 15.90mm 16.800 lbs.
114 5″ x 3 1/2″ x 3/4″ 127mm x 88.9mm x 19.0mm 19.800 lbs.
115 5″ x 5″ 127mm x 127mm
116 5″ x 5″ x 5/16″ 127mm x 127mm x 7.94mm 10.300 lbs.
117 5″ x 5″ x 3/8″ 127mm x 127mm x 9.53mm 12.300 lbs.
118 5″ x 5″ x 1/2″ 127mm x 127mm x 12.70mm 16.200 lbs.
119 5″ x 5″ x 5/8″ 127mm x 127mm x 15.90mm 20.000 lbs.
120 5″ x 5″ x 3/4″ 127mm x 127mm x 19.0mm 23.600 lbs.
121 6″ x 3 1/2″ 152.4mm x 88.9mm
122 6″ x 3 1/2″ x 5/16″ 152.4mm x 88.9mm x 7.94mm 9.800 lbs.
123 6″ x 3 1/2″ x 3/8″ 152.4mm x 88.9mm x 9.53mm 11.700 lbs.
124 6″ x 3 1/2″ x 1/2″ 152.4mm x 88.9mm x 12.70mm 15.300 lbs.
125 6″ x 4″ 152.4mm x 101.6mm
126 6″ x 4″ x 5/16″ 152.4mm x 101.6mm x 7.94mm 10.300 lbs.
127 6″ x 4″ x 3/8″ 152.4mm x 101.6mm x 9.53mm 12.300 lbs.
128 6″ x 4″ x 1/2″ 152.4mm x 101.6mm x 12.70mm 16.200 lbs.
129 6″ x 4″ x 5/8″ 152.4mm x 101.6mm x 15.90mm 20.000 lbs.
130 6″ x 4″ x 3/4″ 152.4mm x 101.6mm x 19.0mm 23.600 lbs.
131 6″ x 6″ 152.4mm x 152.4mm
132 6″ x 6″ x 3/8″ 152.4mm x 152.4mm x 9.53mm 14.900 lbs.
133 6″ x 6″ x 1/2″ 152.4mm x 152.4mm x 12.70mm 19.600 lbs.
134 6″ x 6″ x 5/8″ 152.4mm x 152.4mm x 15.90mm 24.200 lbs.
135 6″ x 6″ x 3/4″ 152.4mm x 152.4mm x 19.0mm 28.700 lbs.
136 6″ x 6″ x 7/8″ 152.4mm x 152.4mm x 22.2mm 33.100 lbs.
137 6″ x 6″ x 1″ 152.4mm x 152.4mm x 25.4mm 37.400 lbs.
138 7″ x 4″ 177.8mm x 101.6mm
139 7″ x 4″ x 3/8″ 177.8mm x 101.6mm x 9.53mm 13.600 lbs.
140 7″ x 4″ x 1/2″ 177.8mm x 101.6mm x 12.70mm 17.900 lbs.
141 7″ x 4″ x 5/8″ 177.8mm x 101.6mm x 15.90mm 22.100 lbs.
142 7″ x 4″ x 3/4″ 177.8mm x 101.6mm x 19.0mm 26.200 lbs.
143 8″ x 4″ 203.2mm x 101.6mm
144 8″ x 4″ x 7/16″ 203.2mm x 101.6mm x 11.1mm 17.200 lbs.
145 8″ x 4″ x 1/2″ 203.2mm x 101.6mm x 12.70mm 19.600 lbs.
146 8″ x 4″ x 5/8″ 203.2mm x 101.6mm x 15.90mm 24.200 lbs.
147 8″ x 4″ x 3/4″ 203.2mm x 101.6mm x 19.0mm 28.700 lbs.
148 8″ x 4″ x 1″ 203.2mm x 101.6mm x 25.4mm 37.400 lbs.
149 8″ x 6″ 203.2mm x 152.4mm
150 8″ x 6″ x 1/2″ 203.2mm x 152.4mm x 12.70mm 23.000 lbs.
151 8″ x 6″ x 9/16″ 203.2mm x 152.4mm x 14.3mm 25.700 lbs.
152 8″ x 6″ x 5/8″ 203.2mm x 152.4mm x 15.90mm 28.500 lbs.
153 8″ x 6″ x 3/4″ 203.2mm x 152.4mm x 19.0mm 33.800 lbs.
154 8″ x 6″ x 1″ 203.2mm x 152.4mm x 25.4mm 44.200 lbs.
155 8″ x 8″ 203.2mm x 203.2mm
156 8″ x 8″ x 1/2″ 203.2mm x 203.2mm x 12.70mm 26.400 lbs.
157 8″ x 8″ x 5/8″ 203.2mm x 203.2mm x 15.90mm 32.700 lbs.
158 8″ x 8″ x 3/4″ 203.2mm x 203.2mm x 19.0mm 38.900 lbs.
159 8″ x 8″ x 7/8″ 203.2mm x 203.2mm x 22.2mm 45.000 lbs.
160 8″ x 8″ x 1″ 203.2mm x 203.2mm x 25.4mm 51.000 lbs.
161 9″ x 4″ 228.6mm x 101.6mm
162 9″ x 4″ x 1/2″ 228.6mm x 101.6mm x 12.70mm 21.300 lbs.
163 9″ x 4″ x 5/8″ 228.6mm x 101.6mm x 15.90mm 26.300 lbs.
164 9″ x 4″ x 3/4″ 228.6mm x 101.6mm x 19.0mm 31.300 lbs.
165 9″ x 4″ x 7/8″ 228.6mm x 101.6mm x 22.2mm 36.100 lbs.
166 9″ x 4″ x 1″ 228.6mm x 101.6mm x 25.4mm 40.800 lbs.
167 1 1/2″ x 1 1/2″ 38.1mm x 38.1mm
168 1 1/2″ x 1 1/2″ x 3/16″ 38.1mm x 38.1mm x 4.76mm 1.900 lbs.
169 2″ x 2″ 50.8mm x 50.8mm
170 2″ x 2″ x 1/4″ 50.8mm x 50.8mm x 6.35mm 3.620 lbs.
Download the List of the Steel Angles
